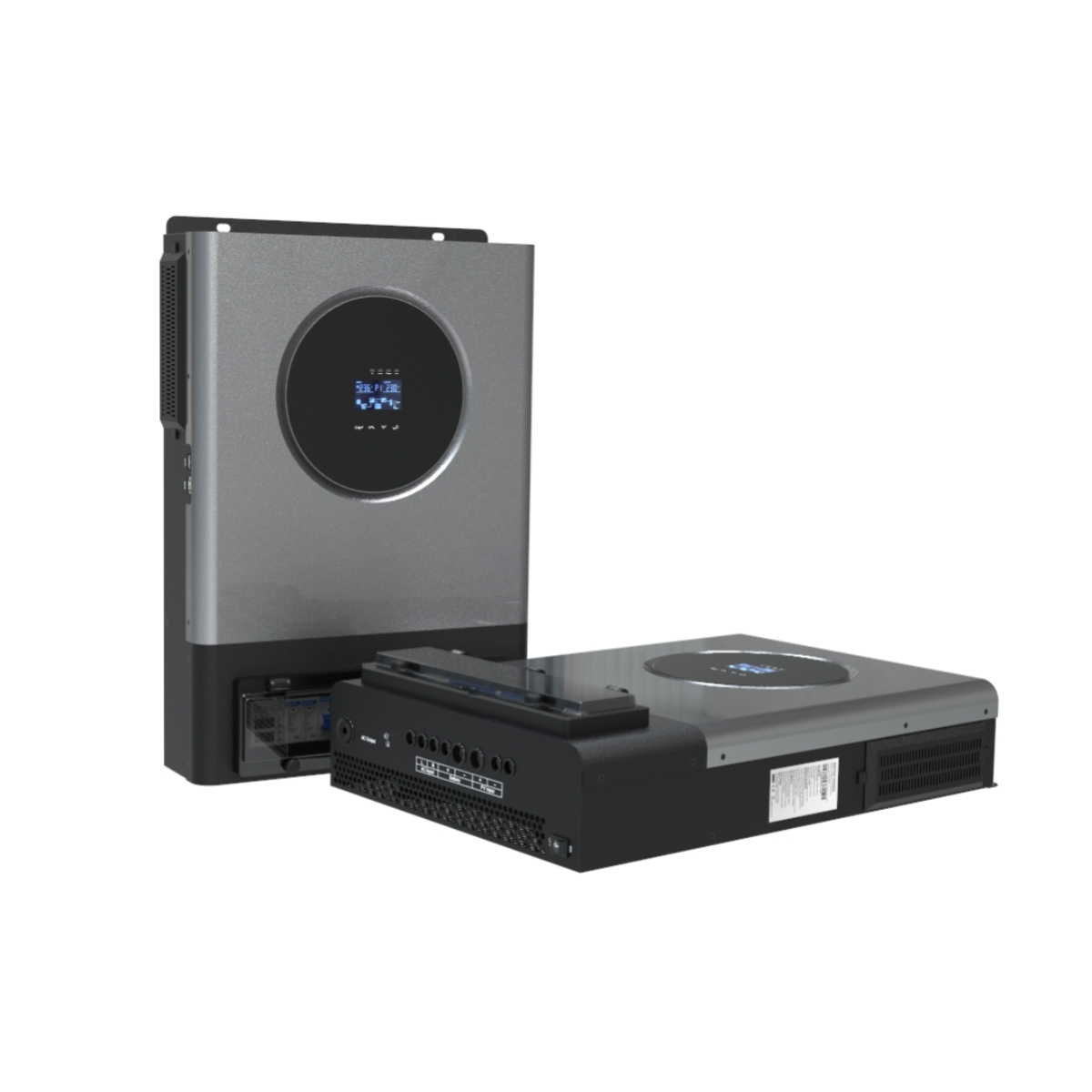

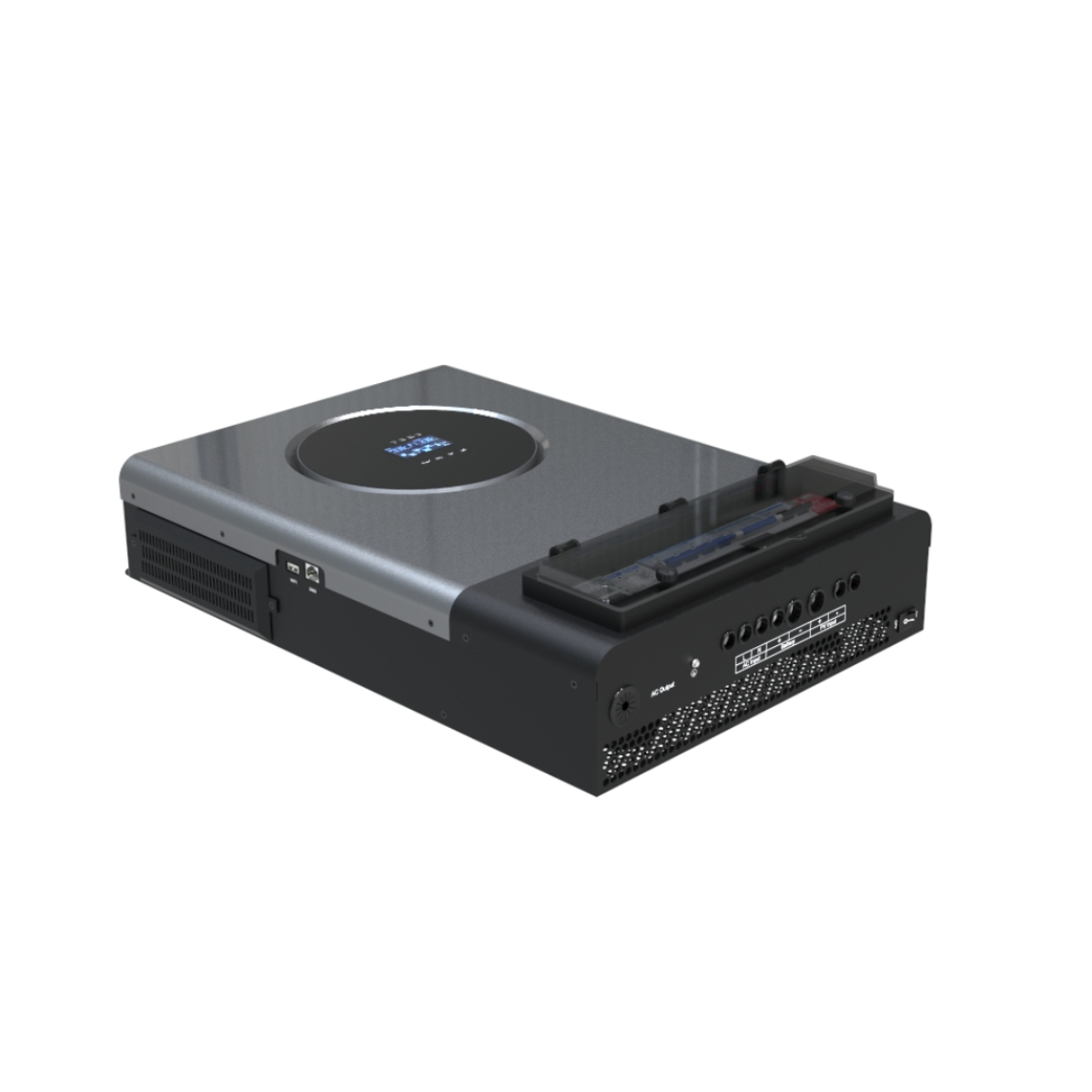

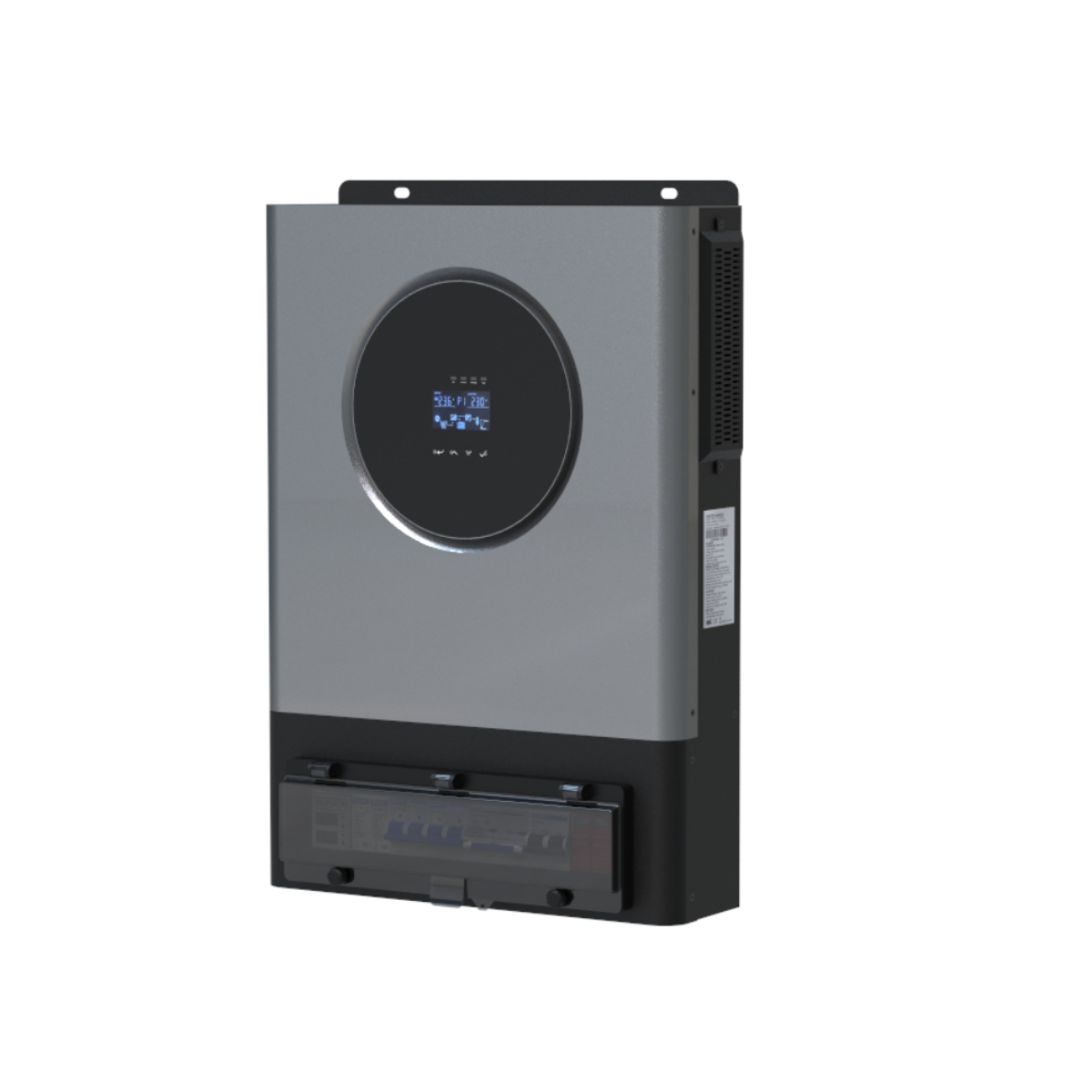

6500w Hybrid Inverter Pro
LW6K5-48 Pro
⚡ 6.5kW Pure Sine Wave Output
Stable, high-power output for full household and light commercial loads.
🚀 12kVA Surge Capacity
Reliable motor start for air conditioners, pumps, and compressors.
🏠 UPS-Level Backup (10ms Transfer Time)
Seamless switching keeps critical loads running during outages.

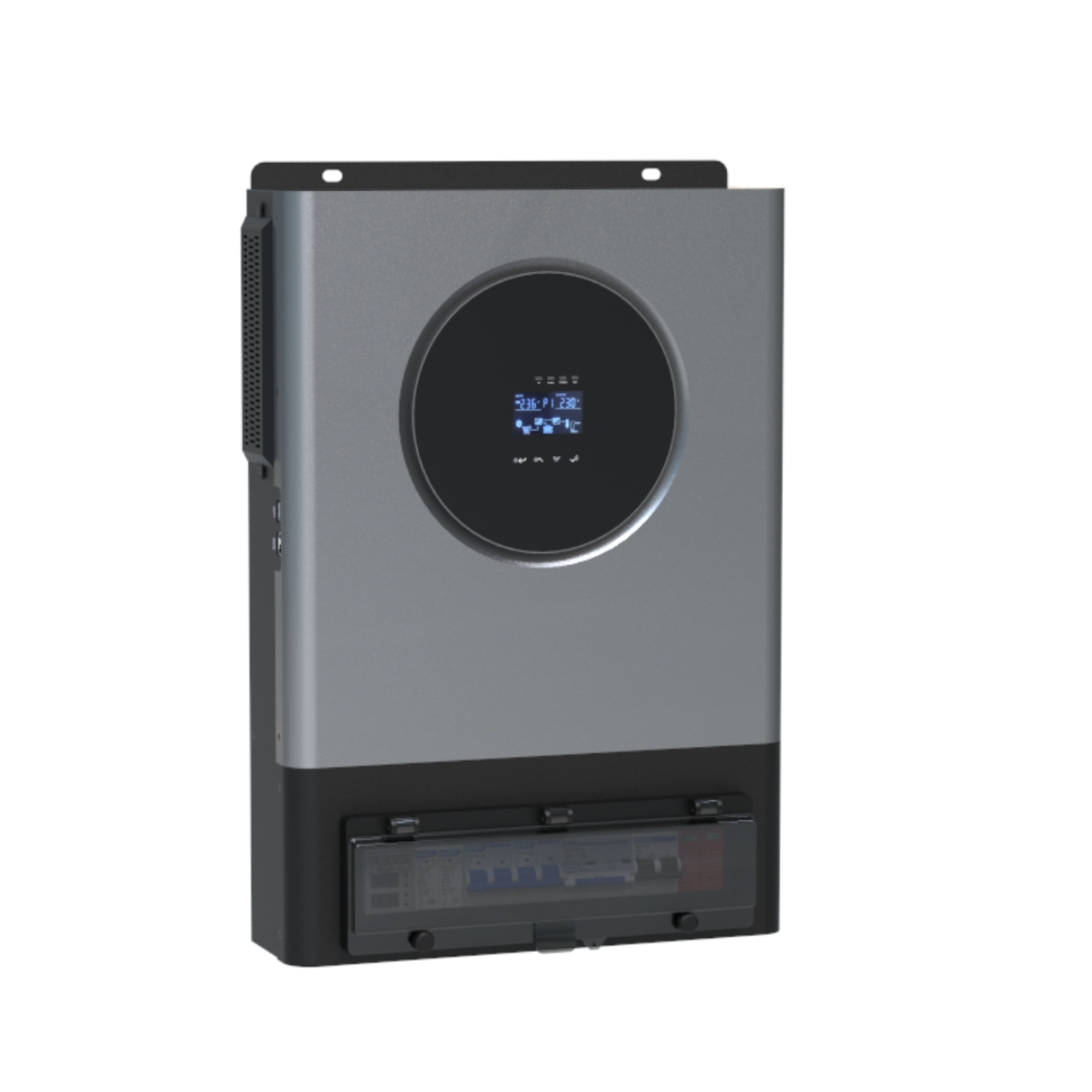

🔧 Built-in PV Combiner Box
Integrated AC/DC breakers and surge protection—no external combiner box required.
🛡 Enhanced Electrical Protection
AC/DC surge protection up to 40kA, with battery, AC input/output, and PV breakers built in.
🔌 48V Lithium & Lead-acid Compatible
Higher system efficiency with lower current loss.
📡 Smart Monitoring & Communication
LCD display with RS232 / RS485 / CAN + optional WiFi.
🌡 Designed for Harsh Environments
Stable operation from -10°C to 60°C, suitable for hot and demanding climates.
Contact Us
|
AC Input |
Rated Input Voltage (VAC) |
208 / 220 / 230 / 240; L+N+PE |
|
Voltage Range (VAC) |
90~280±3 (normal mode); 170~280±3 (UPS mode) |
|
|
Frequency (Hz) |
50 / 60 (Auto Adaptive) |
|
|
AC Output |
Rated Capacity (kW) |
6.5 |
|
Surge Power (kVA) |
12 |
|
|
Voltage (VAC) |
208 / 220 / 230 / 240 |
|
|
Power Factor (PF) |
1 |
|
|
Frequency |
50/60Hz±0.1% |
|
|
Switch Time (ms) |
10 (normal mode) / 10 (UPS mode) |
|
|
Wave Form |
Pure Sine Wave |
|
|
Overload Capacity (Battery Mode) |
1min@102%-120%load, 10s>120% load |
|
|
Max. Efficiency (Battery Mode) |
94%@48VDC |
|
|
Parallel Quantity |
9 (optional) |
|
|
Charger (PV / AC) |
Solar Charger Type |
MPPT |
|
Max PV input current / power |
27A / 9000W |
|
|
MPPT Range@Operating Voltage (VDC) |
60~450 |
|
|
Max PV Open Circuit Voltage (VDC) |
500 |
|
|
Max PV Charge Current (A) |
120 |
|
|
Max AC Charge Current (A) |
120 |
|
|
Max. Charge Current (PV + AC) (A) |
120 |
|
|
Battery |
Normal Voltage (VDC） |
48 |
|
Floating Charge Voltage (VDC) |
54 |
|
|
Overcharge Protection (VDC) |
61 |
|
|
Battery Type |
Lead-acid / Lithium |
|
|
Interface |
HMI |
LCD |
|
Interface |
RS232 / RS485 (optional) / CAN (optional) / Parallel Interface (optional) |
|
|
Monitoring |
Wifi(optional) |
|
|
General Data |
Ingress Protection |
IP21 |
|
Operating Temperature |
-10°C ~ 60°C |
|
|
Relative Humidity |
5% - 95% (Non-condensing) |
|
|
Storage Temperature |
-15°C ~ 60°C |
|
|
Net Weight (kg) |
13.6 |
|
|
Dimensions (H*W*D) |
614*442*212 mm |
|
|
Max. Operating Altitude |
4000m (Derating above 1000m) |
