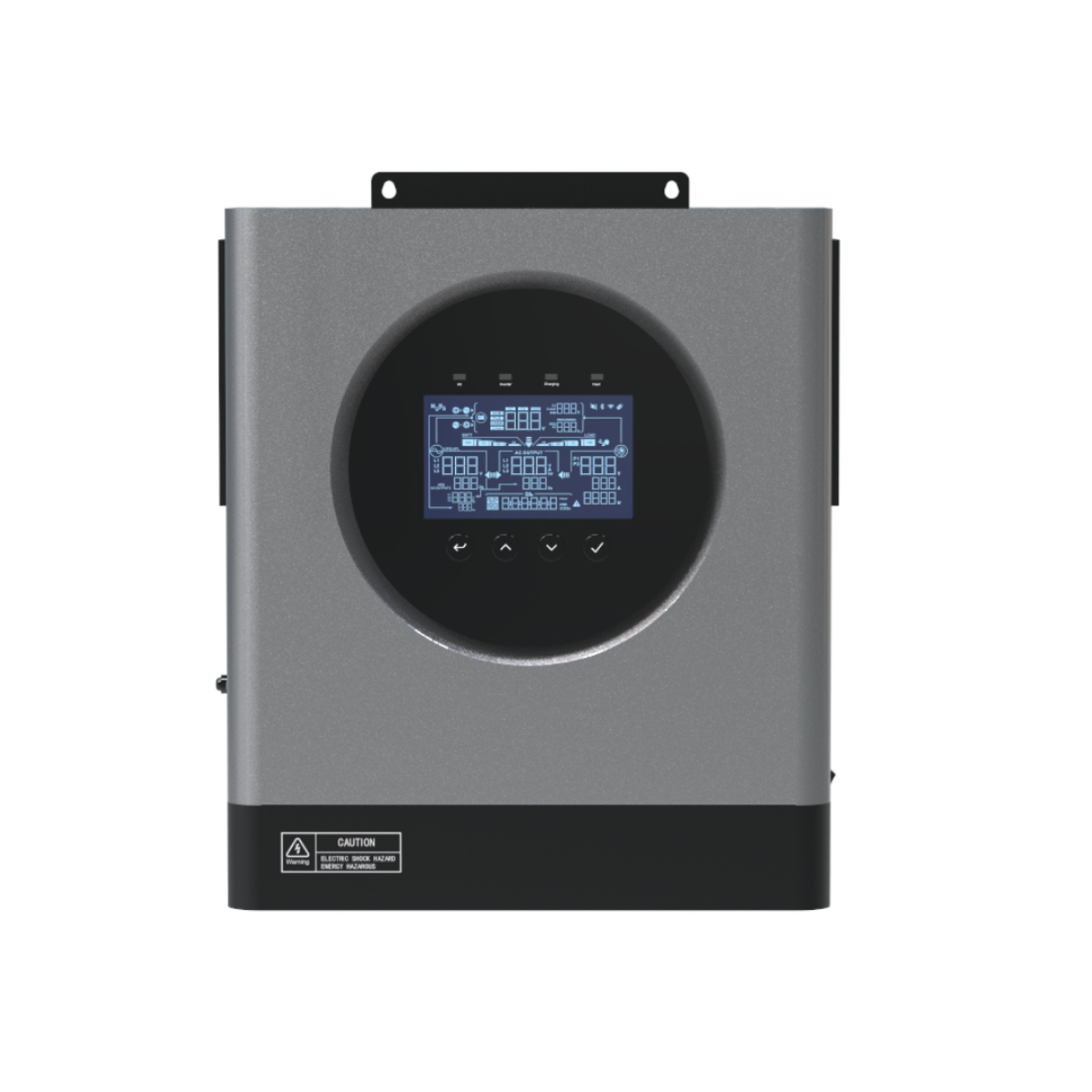

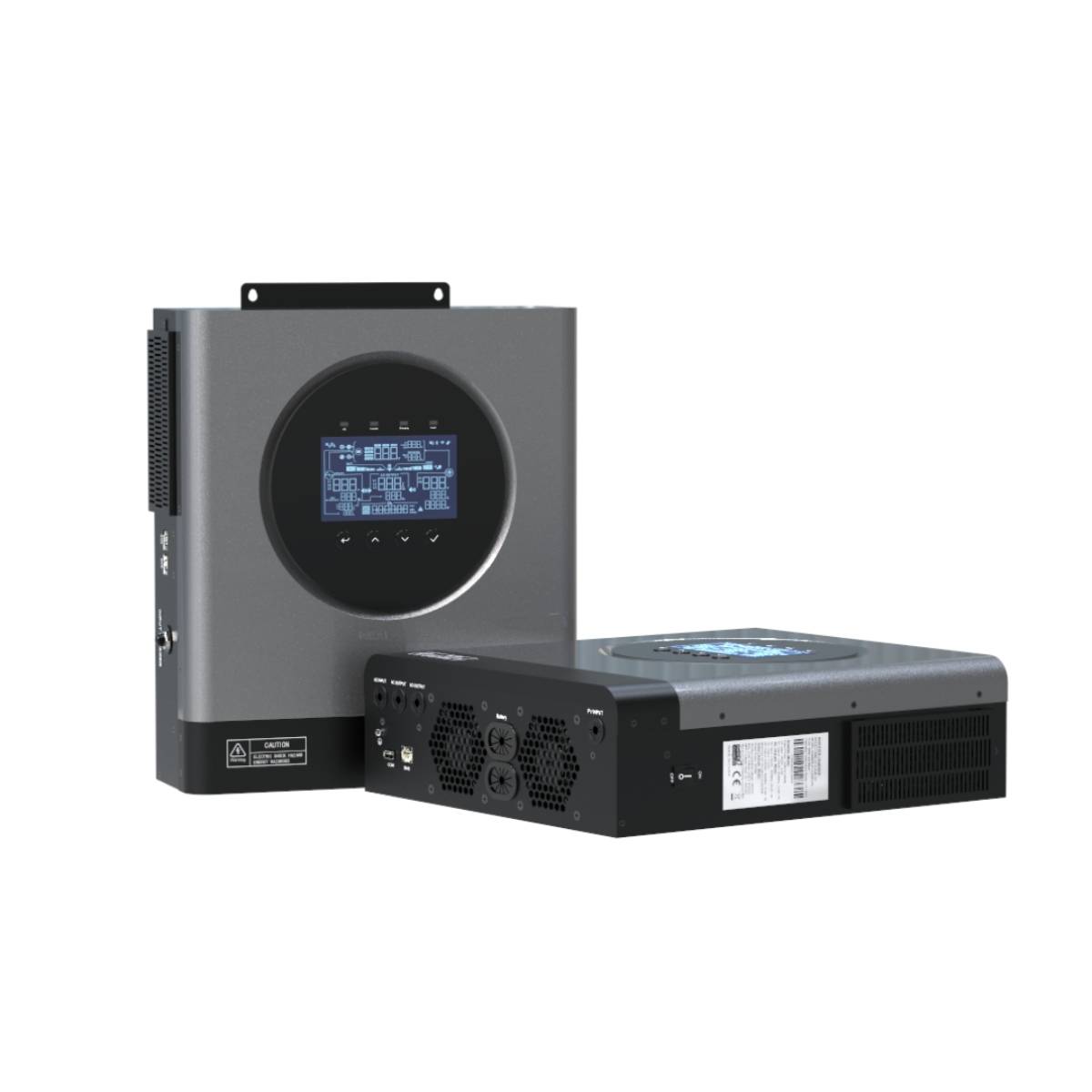

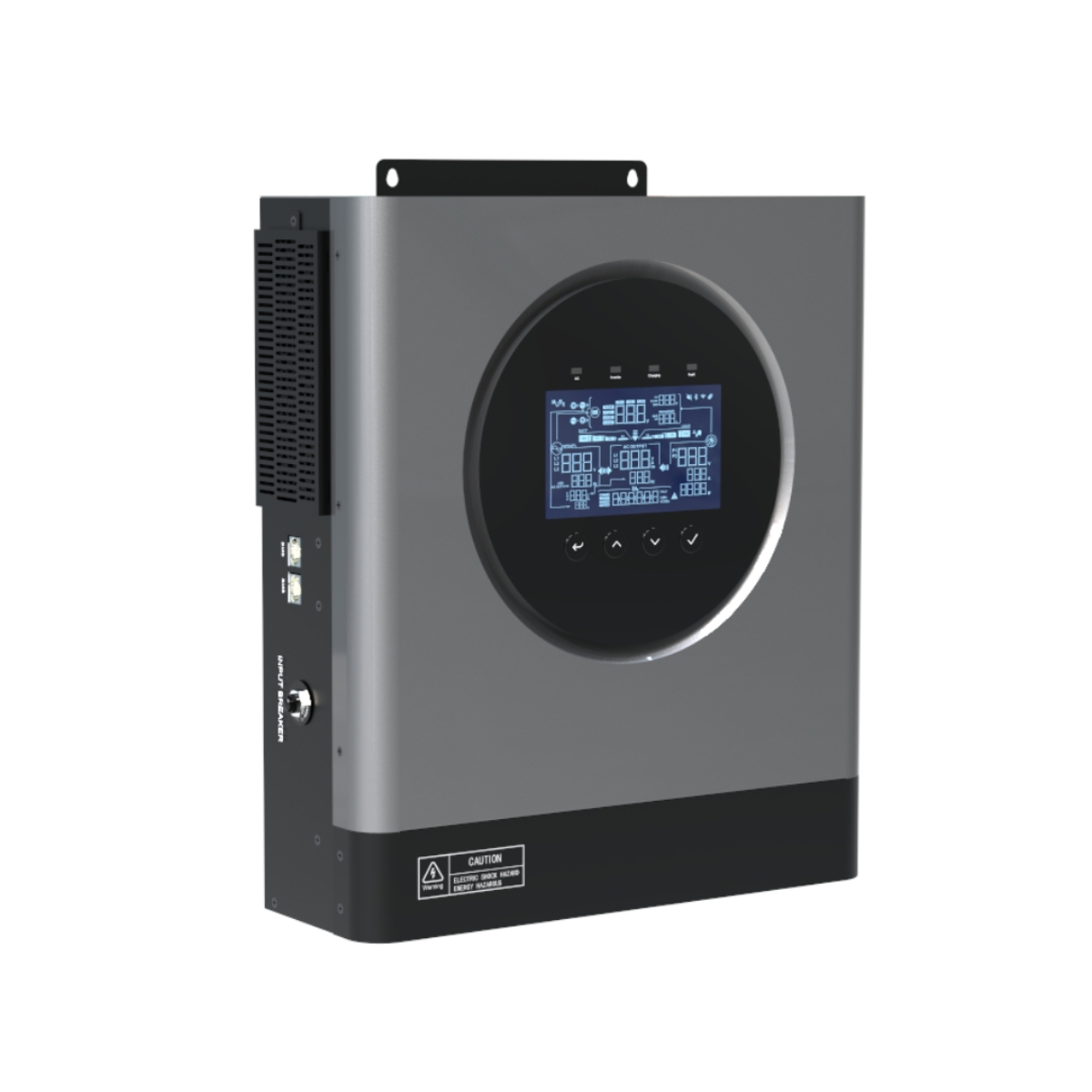

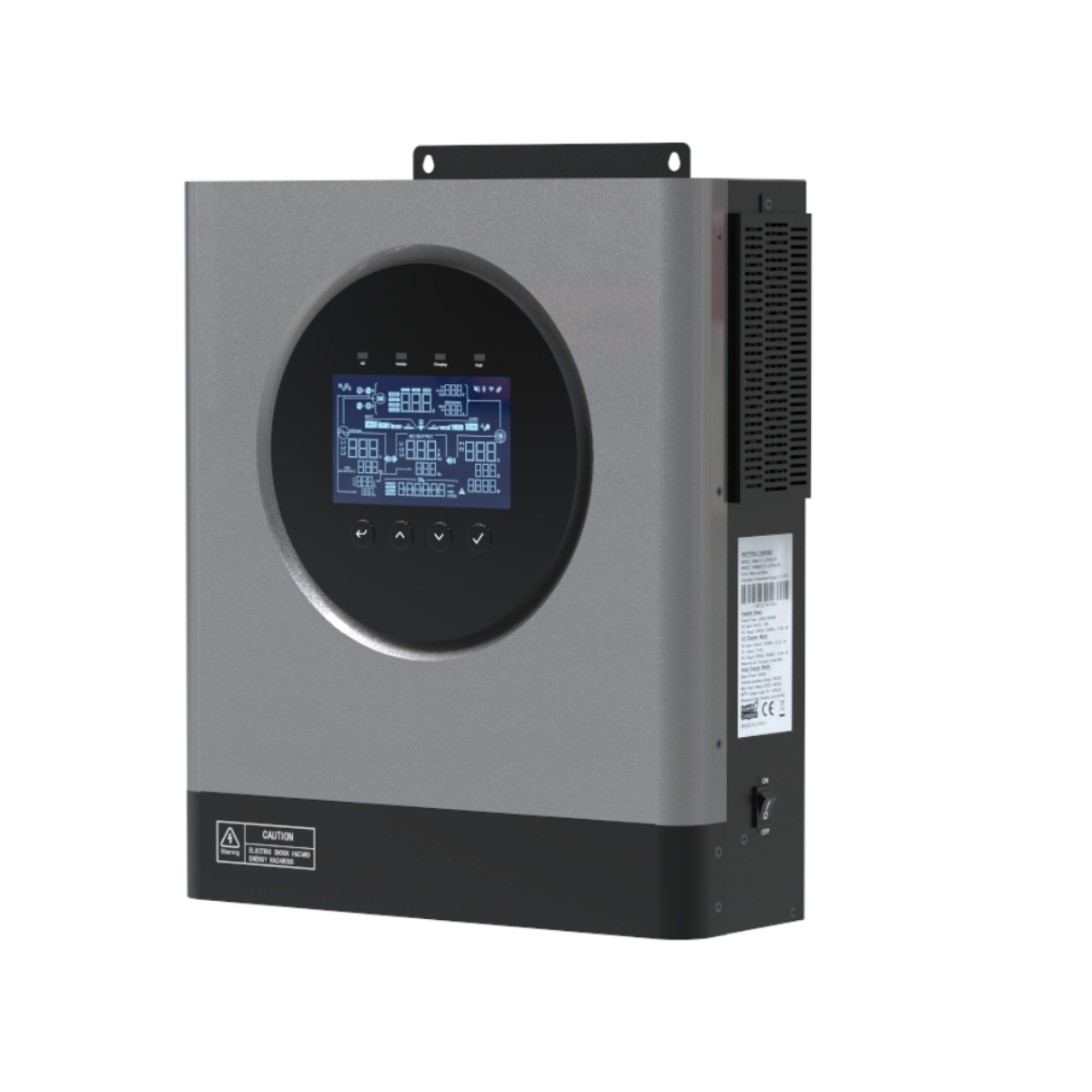

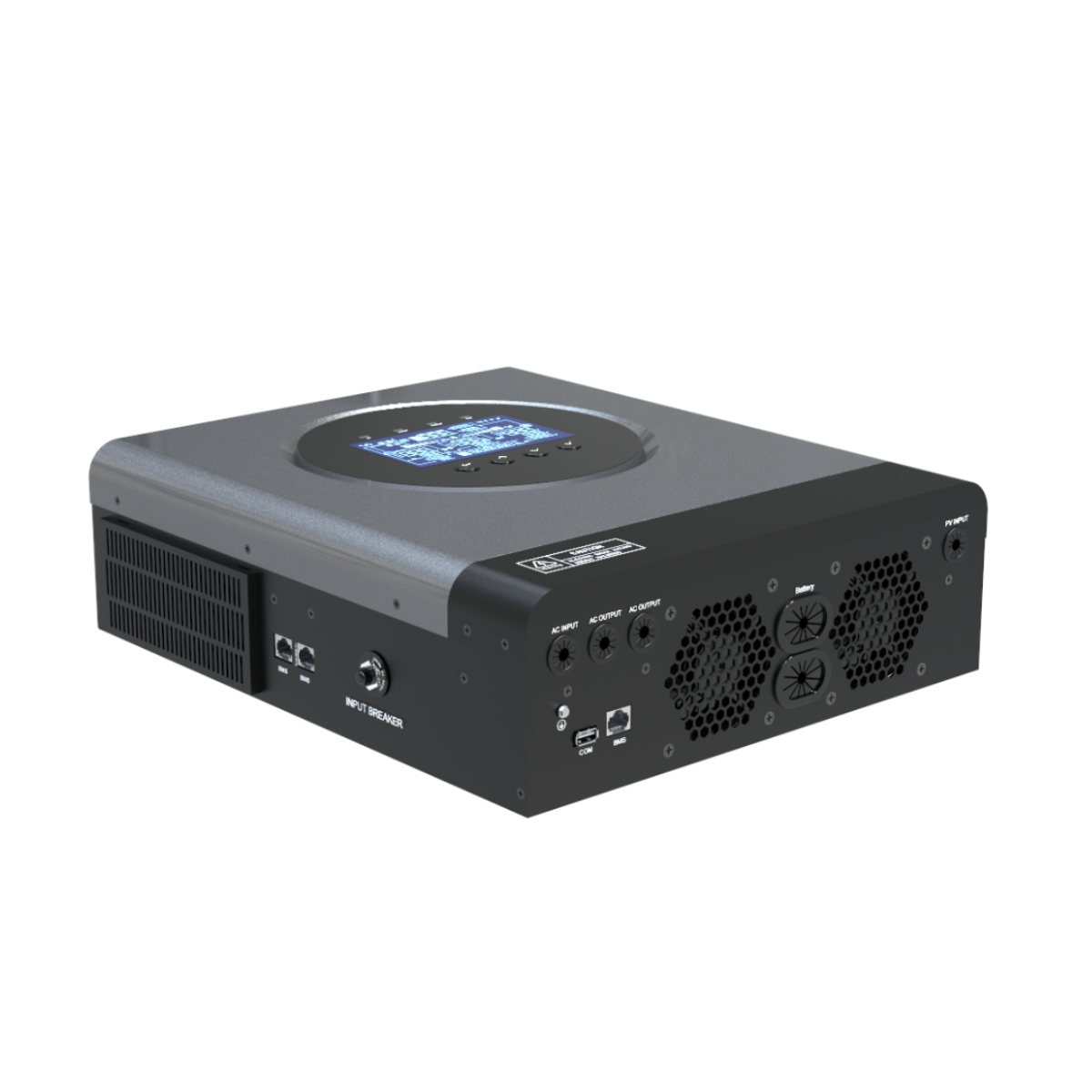

6500w Hybrid Inverter
LW5K-24
⚡ 6.5kW Pure Sine Wave Output;
High continuous power for air conditioners, refrigerators, pumps, and whole-home applications.
🚀 12kVA Surge Power;
Strong motor-start capability for heavy inductive loads.
☀ High-Power MPPT – Up to 9000W PV Input;
Wide MPPT voltage range 60–450V, max PV voltage 500V, ideal for large rooftop and off-grid solar systems.
🔋 Fast Charging – Up to 120A;
Supports PV charging, AC charging, or combined charging up to 120A.
🏠 10ms UPS Transfer Time;
Seamless switching ensures uninterrupted power for critical loads.
🔌 48V Lithium & Lead-acid Compatible;
Higher voltage battery system for better efficiency and lower current loss.
📡 Smart Monitoring & Expansion Ready;
LCD display + RS232 / RS485 / CAN + parallel interface + optional WiFi .
🔒 Comprehensive Protection System;
Overload, short-circuit, overcharge, and thermal protection.
🌡 Wide Operating Temperature: -10°C ~ 60°C;
Stable performance in hot, dusty, and harsh environments.
🛠 Compact Design & OEM/ODM Support;
High power density, compact size, supports branding, panel customization, and low MOQ.
Contact Us
|
AC Input |
Rated Input Voltage (VAC) |
208 / 220 / 230 / 240; L+N+PE |
|
Voltage Range (VAC) |
90~280±3 (normal mode); 170~280±3 (UPS mode) |
|
|
Frequency (Hz) |
50 / 60 (Auto Adaptive) |
|
|
AC Output |
Rated Capacity (kW) |
6.5 |
|
Surge Power (kVA) |
12 |
|
|
Voltage (VAC) |
208 / 220 / 230 / 240 |
|
|
Power Factor (PF) |
1 |
|
|
Frequency |
50/60Hz±0.1% |
|
|
Switch Time (ms) |
10 (normal mode) / 10 (UPS mode) |
|
|
Wave Form |
Pure Sine Wave |
|
|
Overload Capacity (Battery Mode) |
1min@102%-120%load, 10s>120% load |
|
|
Max. Efficiency (Battery Mode) |
94%@48VDC |
|
|
Parallel Quantity |
9 |
|
|
Charger (PV / AC) |
Solar Charger Type |
MPPT |
|
Max PV input current / power |
27A / 9000W |
|
|
MPPT Range@Operating Voltage (VDC) |
60~450 |
|
|
Max PV Open Circuit Voltage (VDC) |
500 |
|
|
Max PV Charge Current (A) |
120 |
|
|
Max AC Charge Current (A) |
120 |
|
|
Max. Charge Current (PV + AC) (A) |
120 |
|
|
Battery |
Normal Voltage (VDC） |
48 |
|
Floating Charge Voltage (VDC) |
54 |
|
|
Overcharge Protection (VDC) |
61 |
|
|
Battery Type |
Lead-acid / Lithium |
|
|
Interface |
HMI |
LCD |
|
Interface |
RS232 / RS485 (optional) / CAN (optional) / Parallel Interface (optional) |
|
|
Monitoring |
Wifi(optional) |
|
|
General Data |
Ingress Protection |
IP21 |
|
Operating Temperature |
-10°C ~ 60°C |
|
|
Relative Humidity |
5% - 95% (Non-condensing) |
|
|
Storage Temperature |
-15°C ~ 60°C |
|
|
Net Weight (kg) |
8.4 |
|
|
Dimensions (H*W*D) |
410*336*110mm |
|
|
Max. Operating Altitude |
4000m (Derating above 1000m) |
