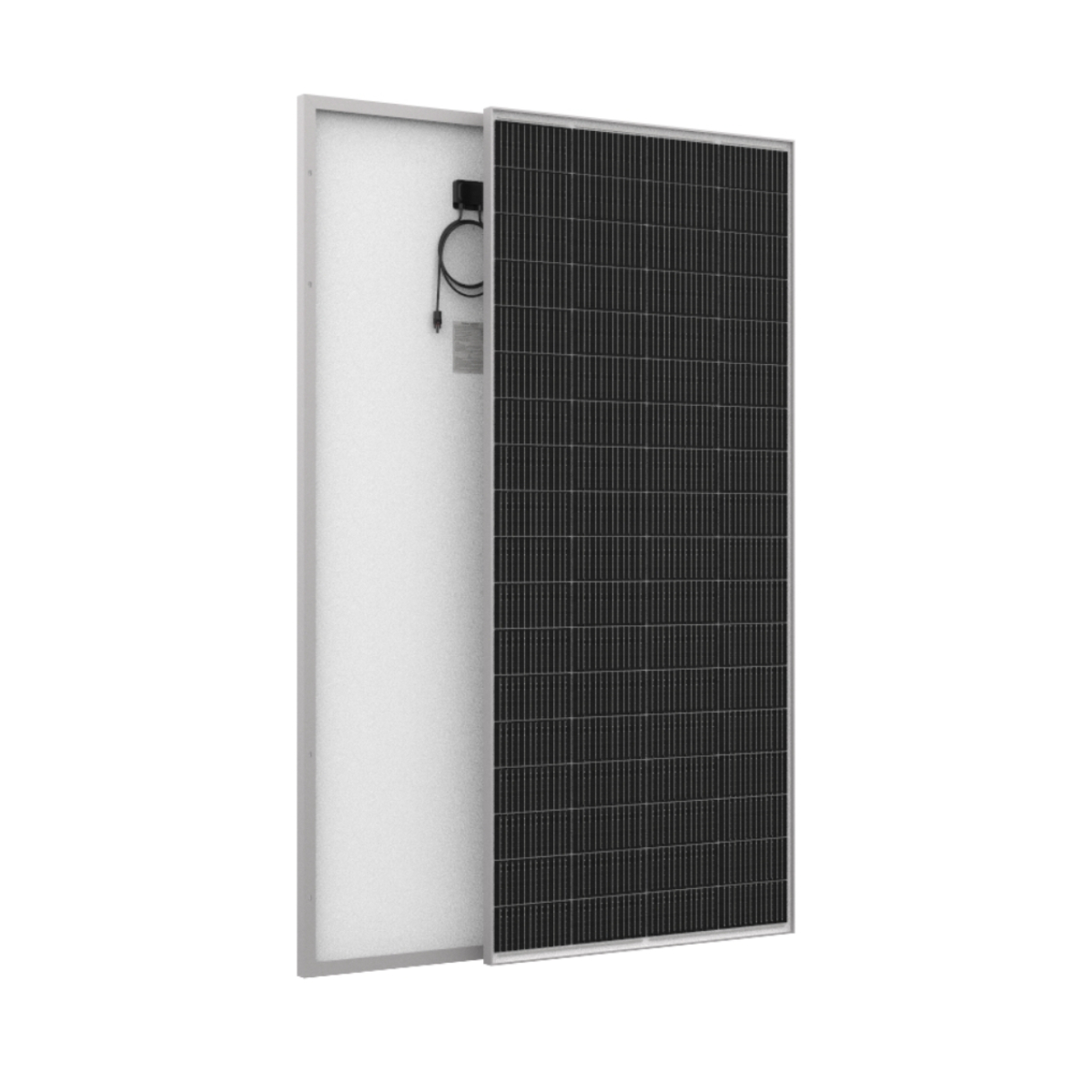

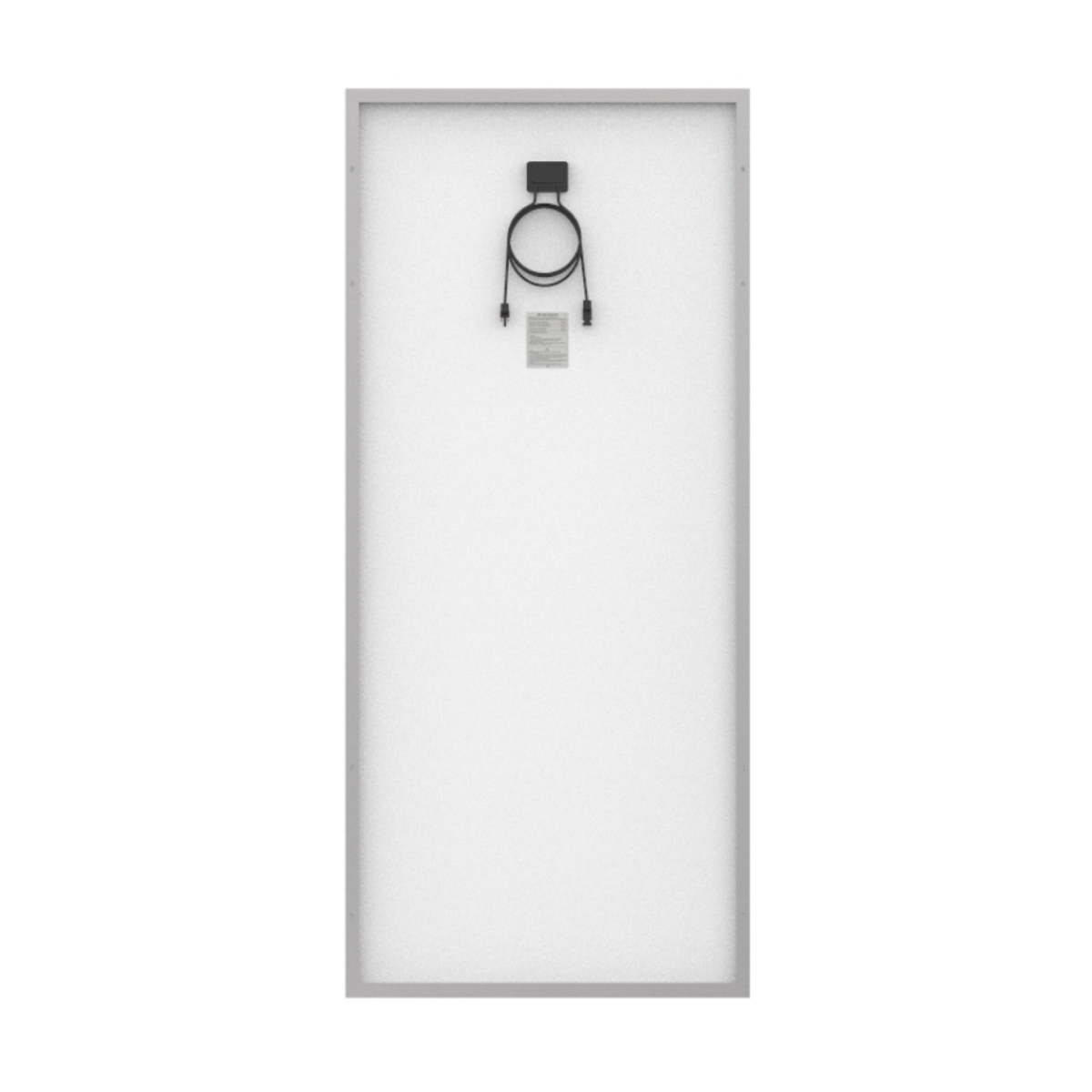

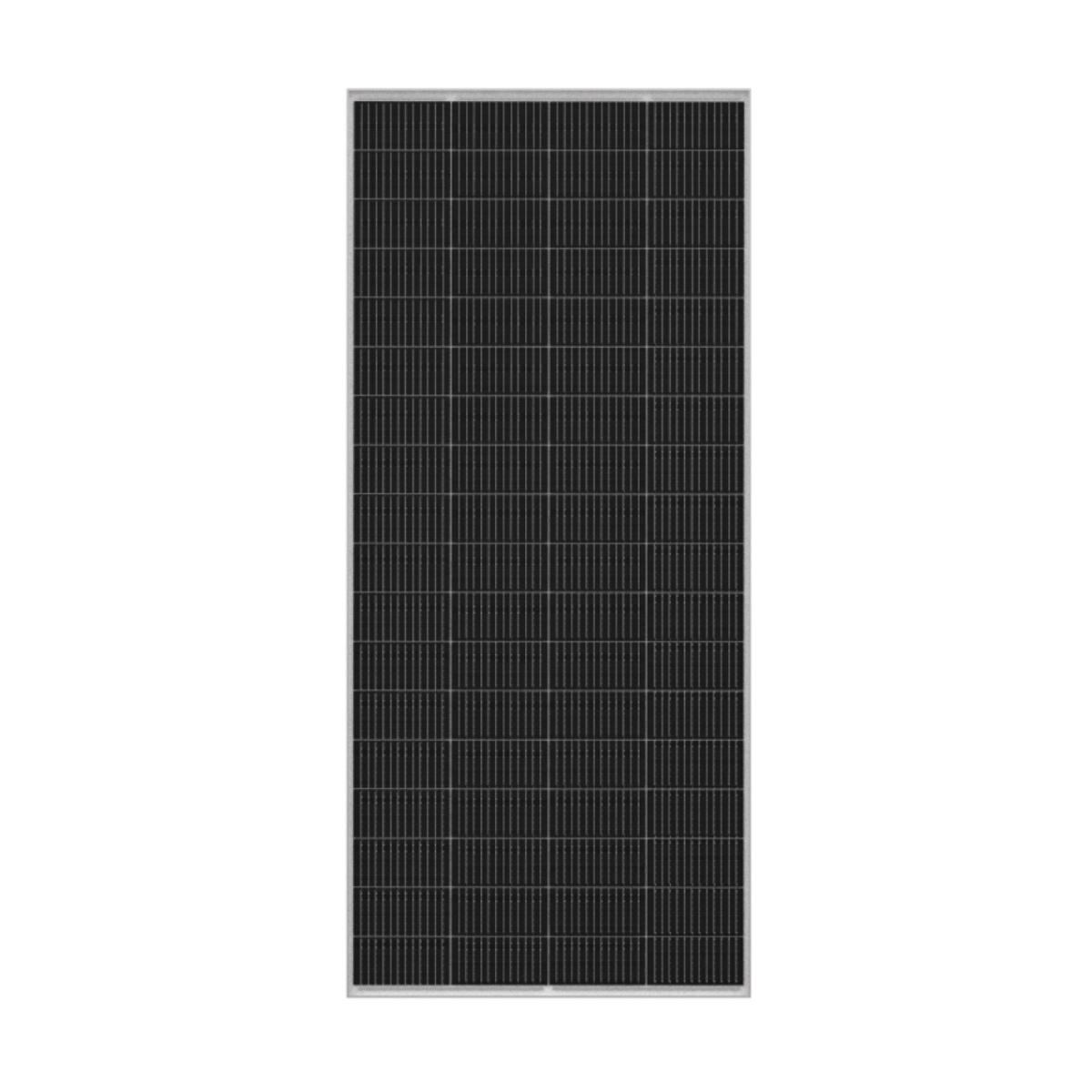

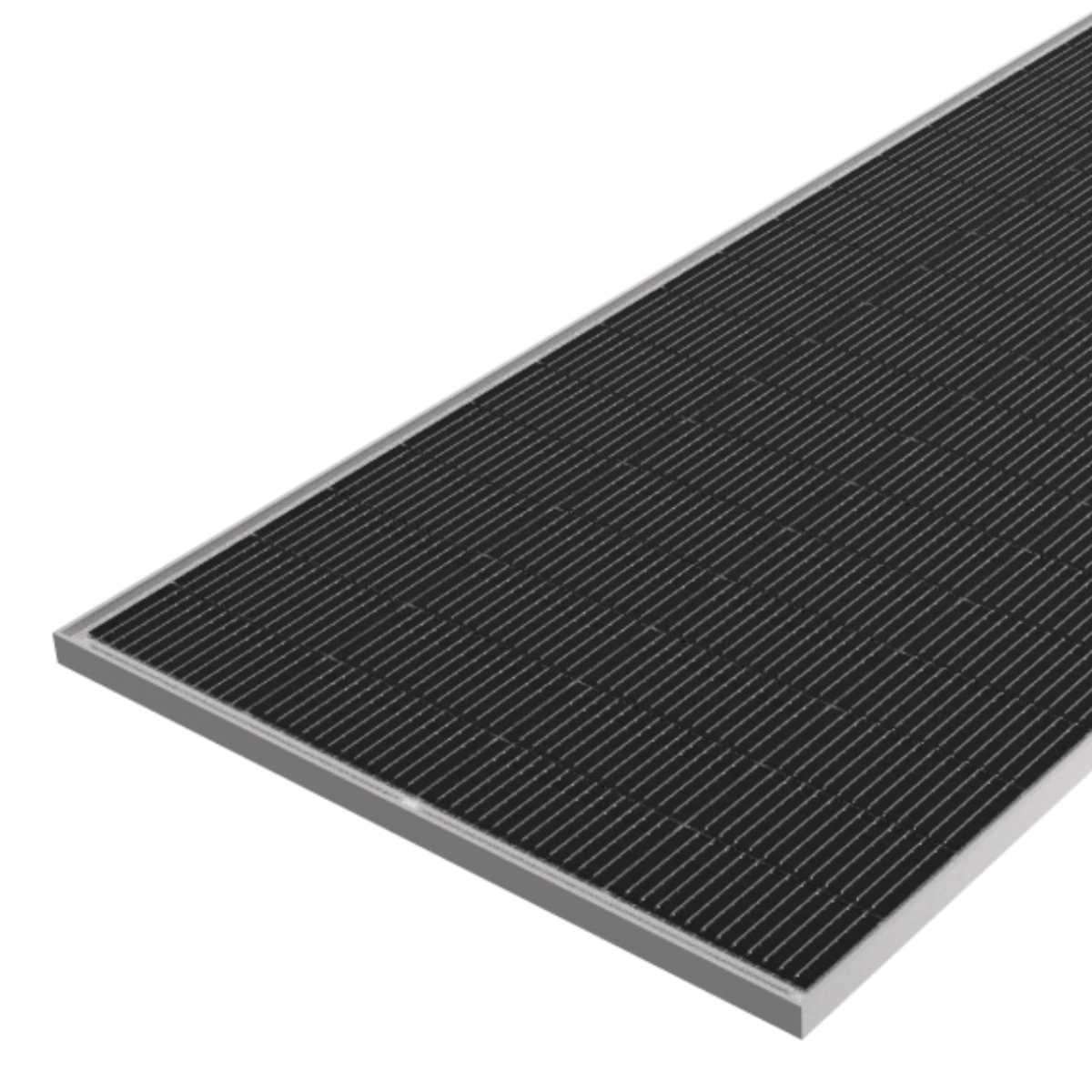

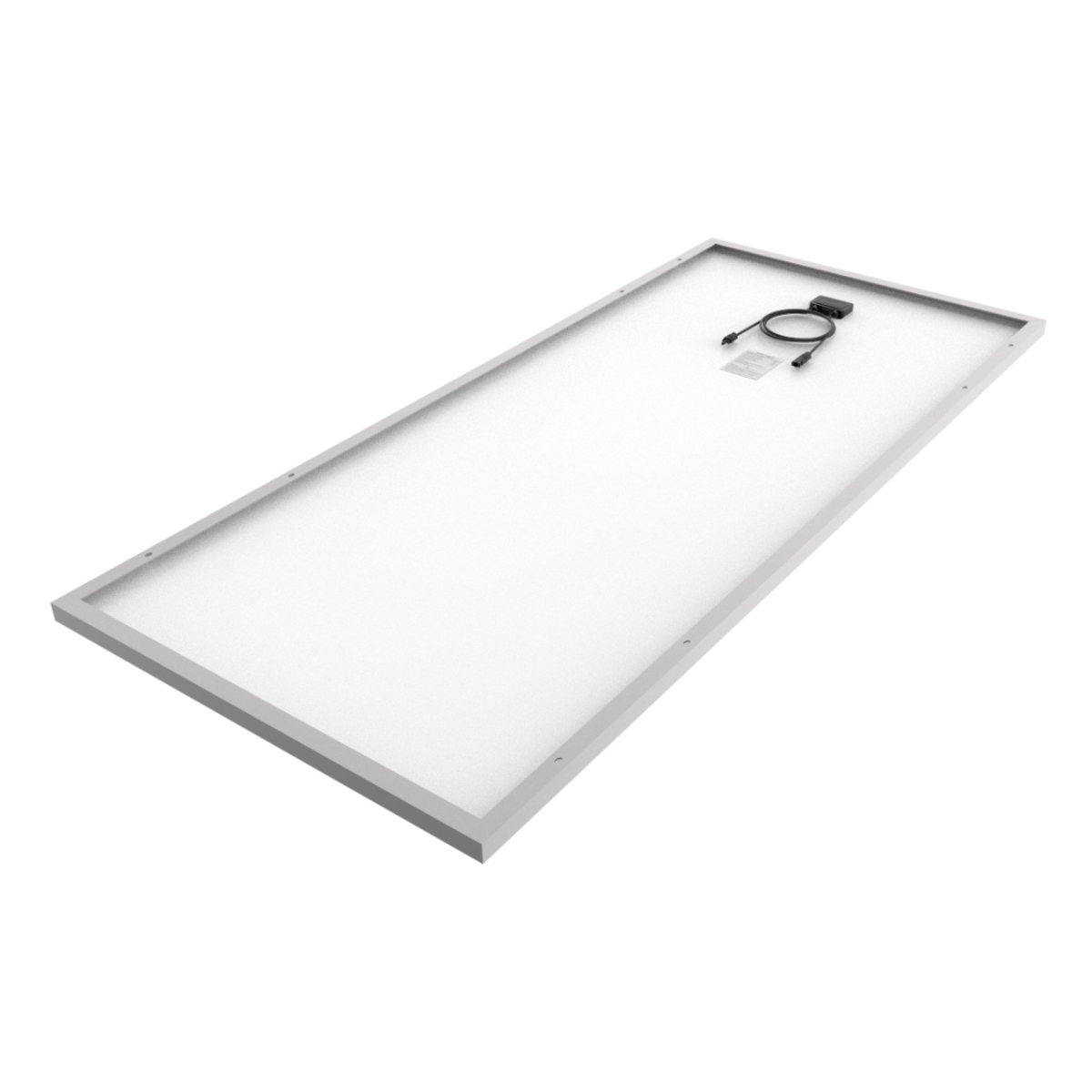

360w 1980x880x30mm
Solar Panels
Contact Us
|
Electrical Characteristics (STC) |
|
|
Maximum Power- Pmax |
360W |
|
Open Circuit Voltage - Voc |
51.84V |
|
Short- Circuit Current - Isc |
8.83A |
|
Voltage at Pmax -Vmp |
43.20V |
|
Current at Pmax - Imp |
8.33A |
|
Module Efficiency -ηm |
20.66% |
|
Power Tolerance |
0, +4.99W |
|
Maximum System Voltage |
700Vdc (IEC / UL) |
|
Maximum Series Fuse Rating |
20A |
|
Mechanical Specifications |
|
|
External Dimensions |
1980*880*30mm |
|
Weight |
17.96KG |
|
Solar Cells |
Mono crystalline 210*105mm (4*18Pcs) |
|
Front Glass |
3.2 mm tempered glass |
|
Frame |
Aluminum |
|

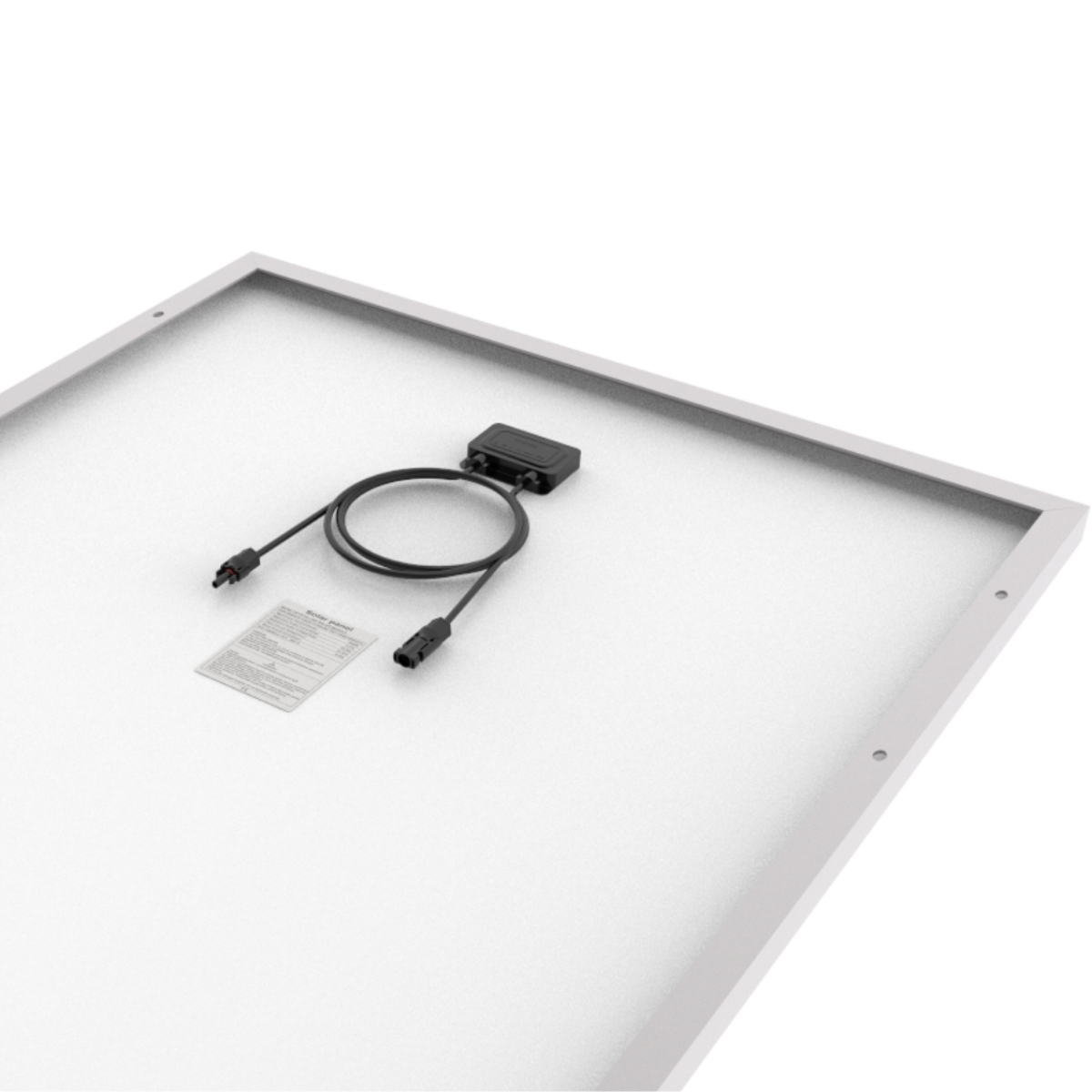

Junction Box |
IP67 |
|
Output Cables |
100CM 4mm² Cable |
|
Connector |
MC4 Compatible |
|
Mechanical Load |
Front Side Max. 5400Pa, Rear Side Max. 2400Pa |
|
Packing Configuration |
|
|
Module Type |
210M360 |
|
Module Dimensions |
1980*880*30mm |
|
Package Dimensions |
1995*70*895mm |
|
Package Weight |
38KG |
|
Pieces/Package |
2Pcs |
|
Temperature Characteristics |
|
|
Pmax Temperature Coe cient |
-0.350%/°C |
|
Voc Temperature Coe cient |
-0.270%/°C |
|
Isc Temperature Coe cient |
+0.048%/°C |
|
Operating Temperature |
-40~+85°C |
|
Nominal Operating Cell Temperature(NOCT) |
45±2°C |
