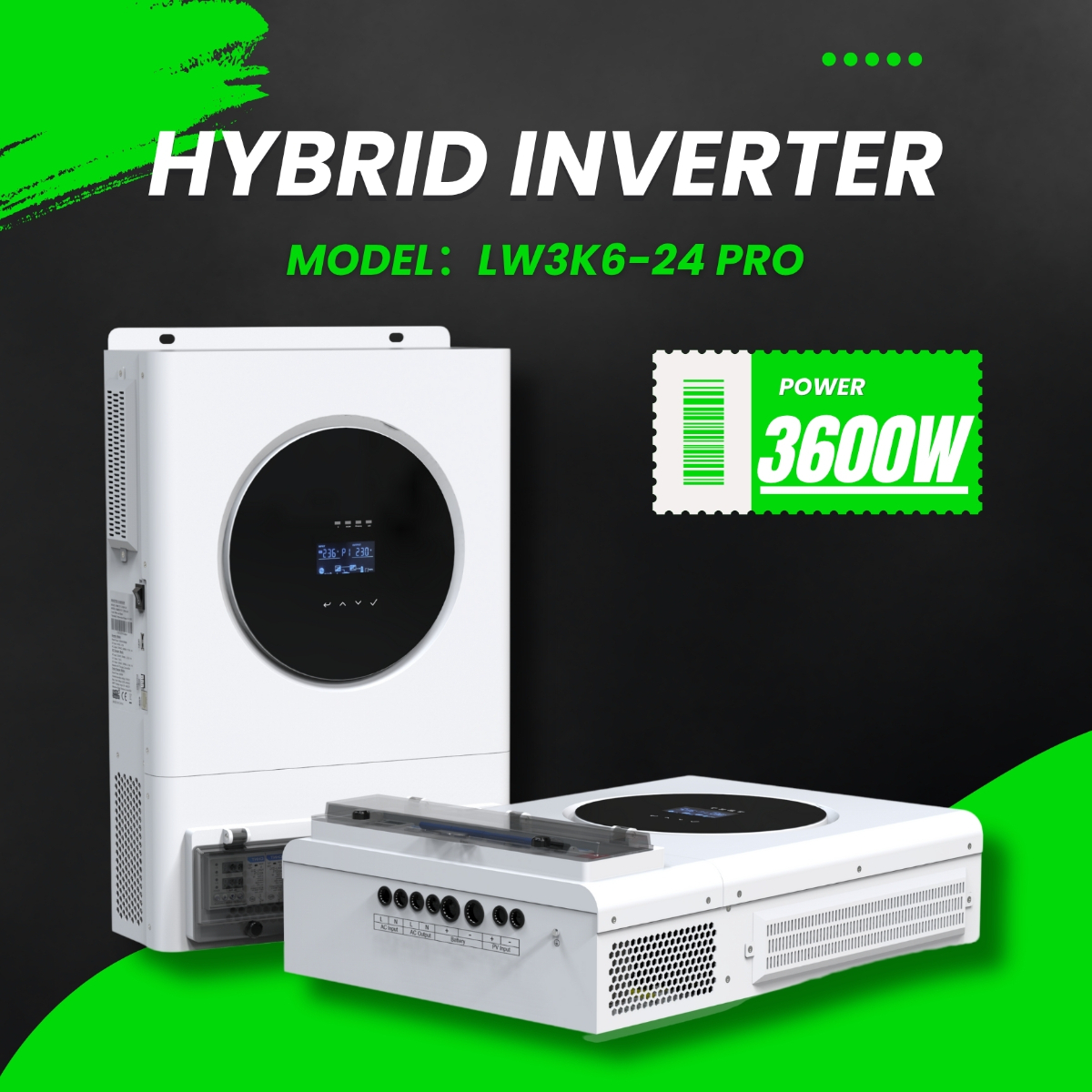

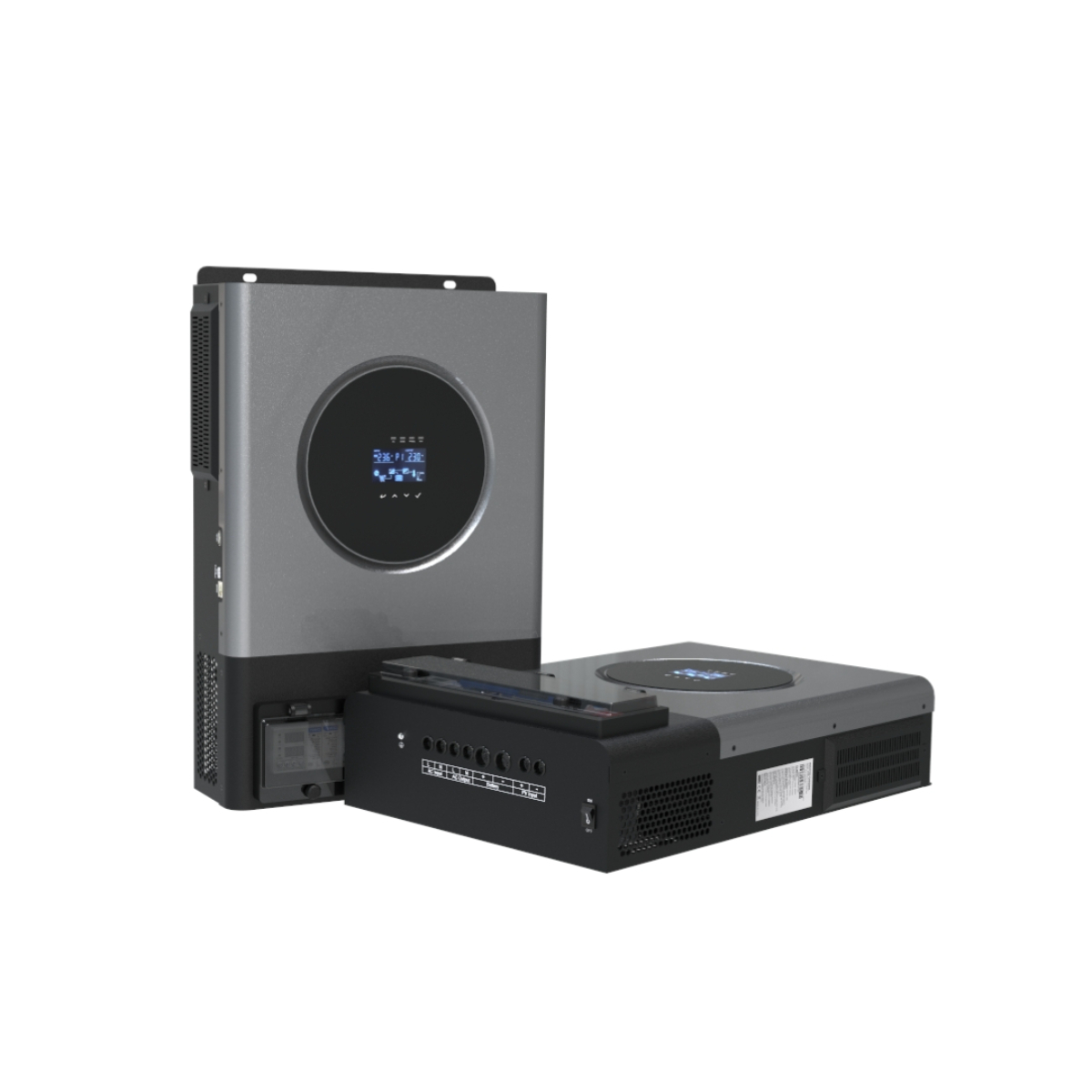

3600w Hybrid Inverter Pro
LW3K6-24 Pro
⚡ Stable 3.6kW Pure Sine Wave Output
Reliable power for home appliances and light commercial loads.
🚀 7.2kVA High Surge Capability
Smooth start-up for refrigerators, pumps, and motor loads.
☀ High-Voltage MPPT Solar Input (Up to 5000W)
Wide PV range 40–450V, max PV voltage 500V, flexible PV design.
🔋 Fast Charging up to 100A (PV + AC)
Supports solar, grid, or combined charging for shorter downtime.
🏠 UPS-Level Backup (10ms / GEN 20ms)
Instant switching keeps critical loads running during outages.

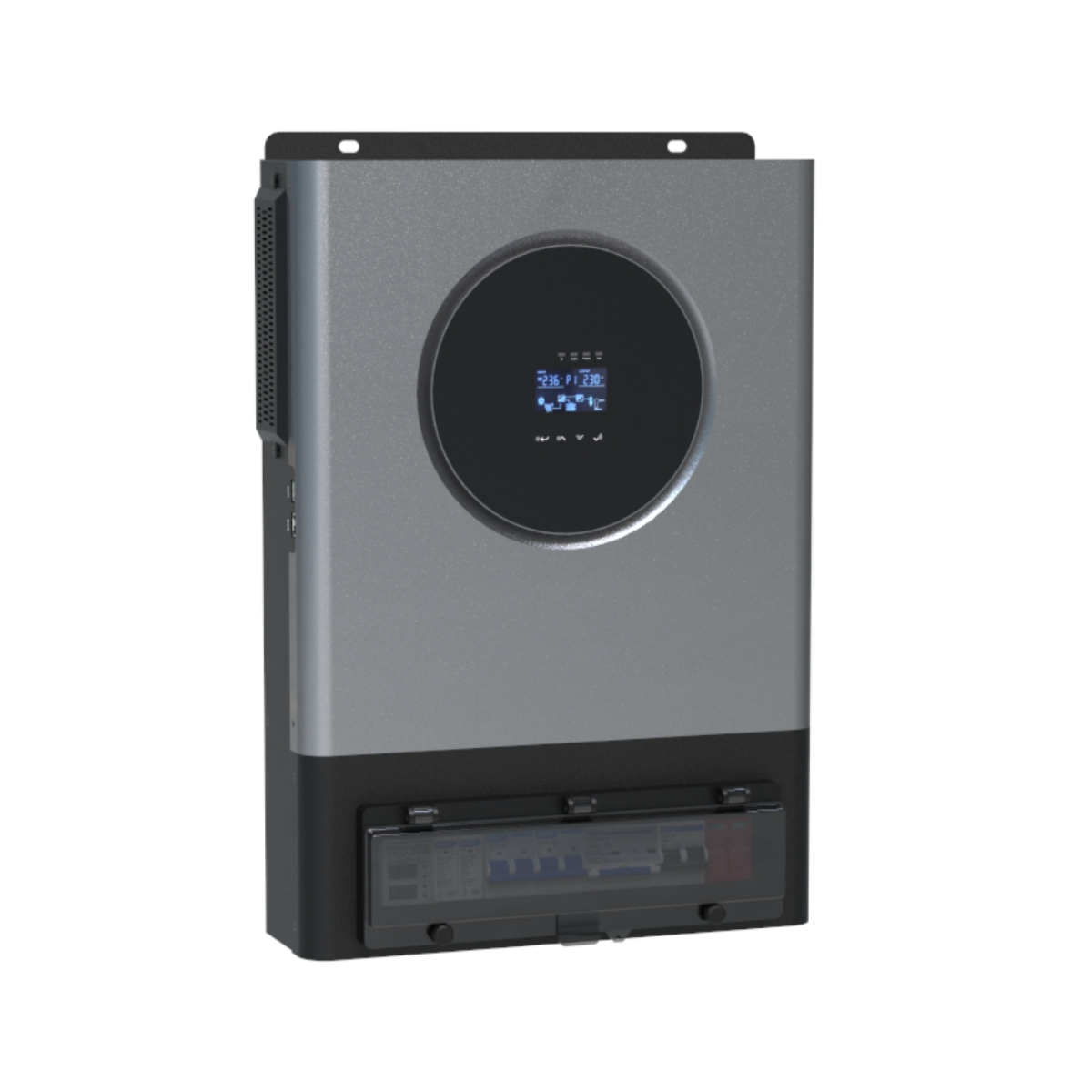

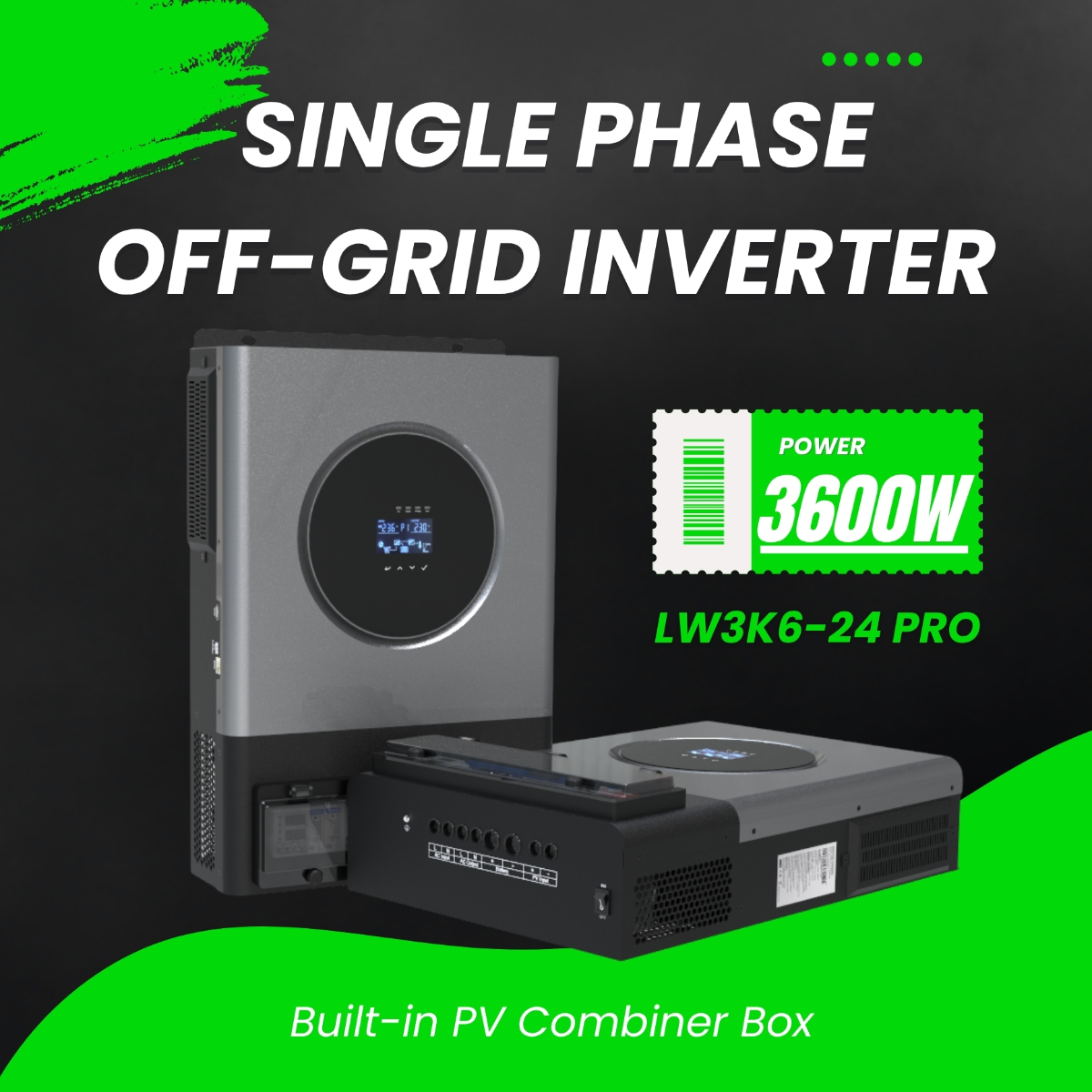

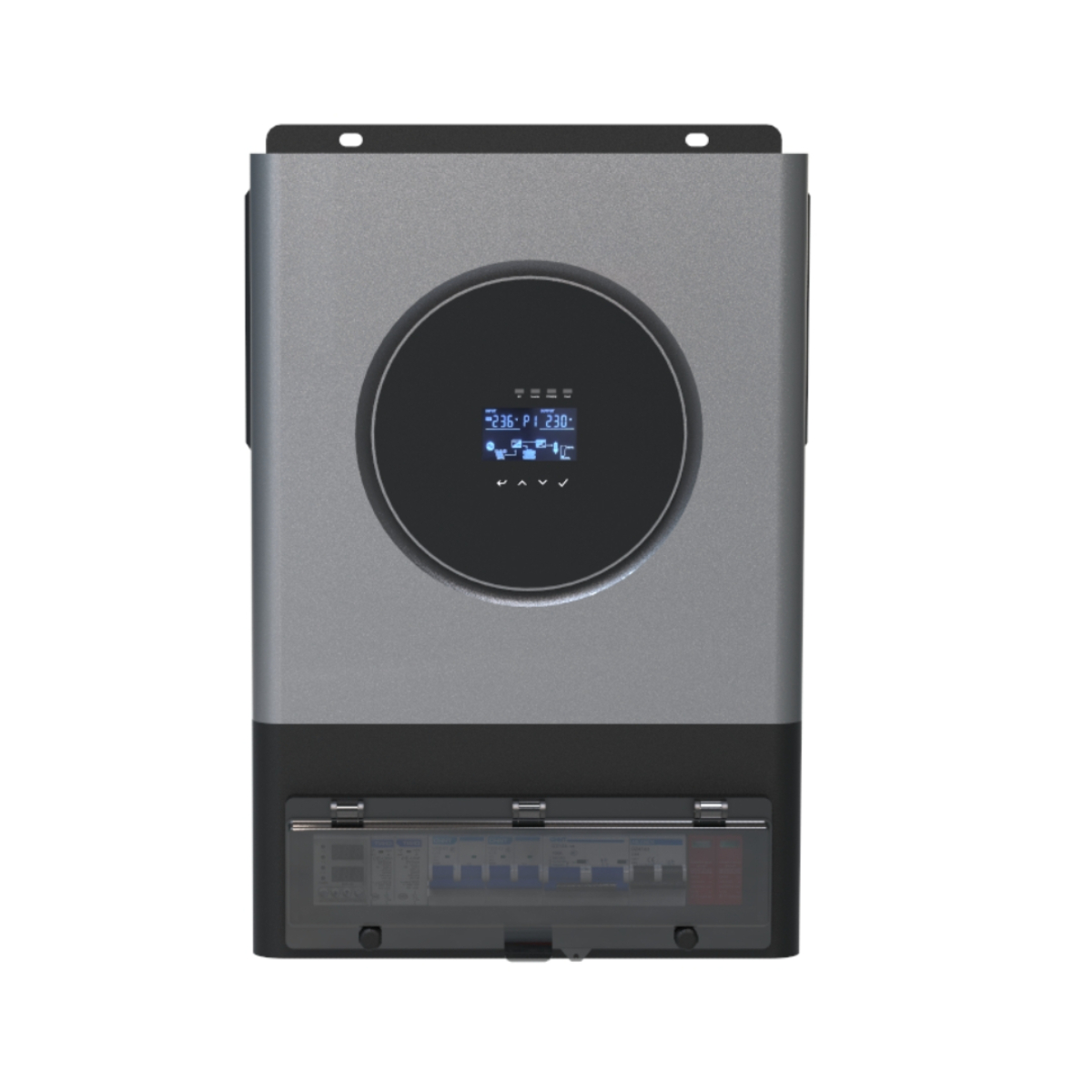

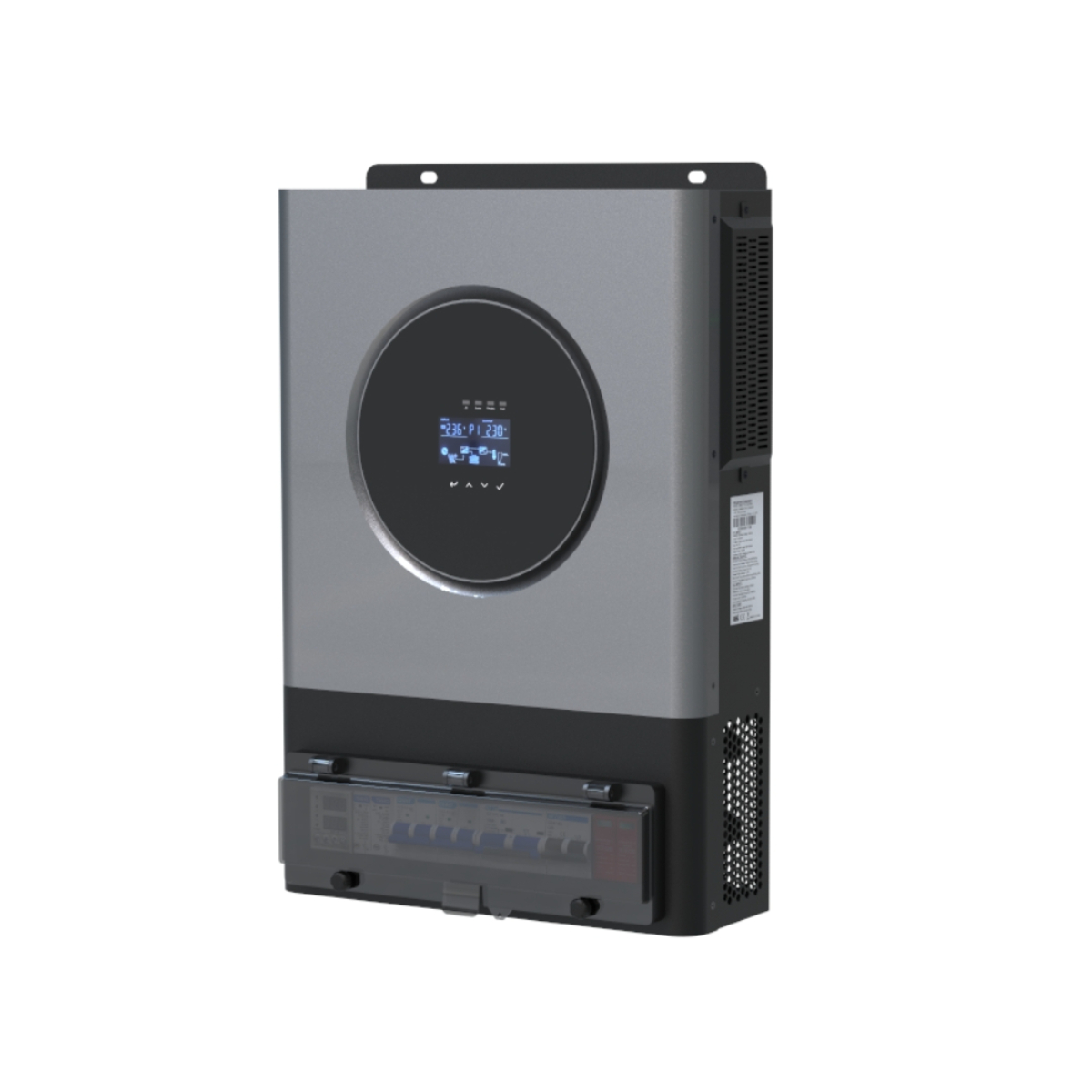

🔧 Built-in PV Combiner Box
Integrated AC/DC breakers and surge protection—no external box needed.
🛡 Integrated Safety Protection
AC/DC surge protection up to 40kA with battery, AC, and PV breakers.
🔌 Lithium & Lead-acid Compatible (24V)
Flexible battery options for different budgets and applications.
📡 Smart Monitoring Ready
LCD display with RS232 / RS485 / CAN and optional WiFi.
🌡 Designed for Harsh Environments
Stable operation from -10°C to 60°C, suitable for hot climates.
Contact Us
|
AC Input |
Rated Input Voltage (VAC) |
208 / 220 / 230 / 240; L+N+PE |
|
Voltage Range (VAC) |
90~280±3 (normal mode); 170~280±3 (UPS mode) |
|
|
Frequency (Hz) |
50 / 60 (Auto Adaptive) |
|
|
AC Output |
Rated Capacity (kW) |
3.6 |
|
Surge Power (kVA) |
7.2 |
|
|
Voltage (VAC) |
208 / 220 / 230 / 240 |
|
|
Power Factor (PF) |
1 |
|
|
Frequency |
50/60Hz±0.1% |
|
|
Switch Time (ms) |
10 (APP/UPS mode) / 20 (GEN mode) |
|
|
Wave Form |
Pure Sine Wave |
|
|
Overload Capacity (Battery Mode) |
60s@102%-110% load; 10s@110%-130% load; 3s@130%-150% load; 0.2s@>150% load |
|
|
Max. Efficiency (Battery Mode) |
92.7%@24VDC |
|
|
Parallel Quantity |
NA |
|
|
Charger (PV / AC) |
Solar Charger Type |
MPPT |
|
Max PV input current / power |
18A / 5000W |
|
|
MPPT Range@Operating Voltage (VDC) |
40~450 |
|
|
Max PV Open Circuit Voltage (VDC) |
500 |
|
|
Max PV Charge Current (A) |
100 |
|
|
Max AC Charge Current (A) |
100 |
|
|
Max. Charge Current (PV + AC) (A) |
100 |
|
|
Battery |
Normal Voltage (VDC） |
24 |
|
Floating Charge Voltage (VDC) |
27 |
|
|
Overcharge Protection (VDC) |
30.5 |
|
|
Battery Type |
Lead-acid / Lithium |
|
|
Interface |
HMI |
LCD |
|
Interface |
RS232 / RS485 / CAN |
|
|
Monitoring |
Wifi(optional) |
|
|
General Data |
Ingress Protection |
IP21 |
|
Operating Temperature |
-10°C ~ 60°C |
|
|
Relative Humidity |
5% - 95% (Non-condensing) |
|
|
Storage Temperature |
-15°C ~ 60°C |
|
|
Net Weight (kg) |
11.6 |
|
|
Dimensions (H*W*D) |
585*415*211 mm |
|
|
Max. Operating Altitude |
4000m (Derating above 1000m) |
