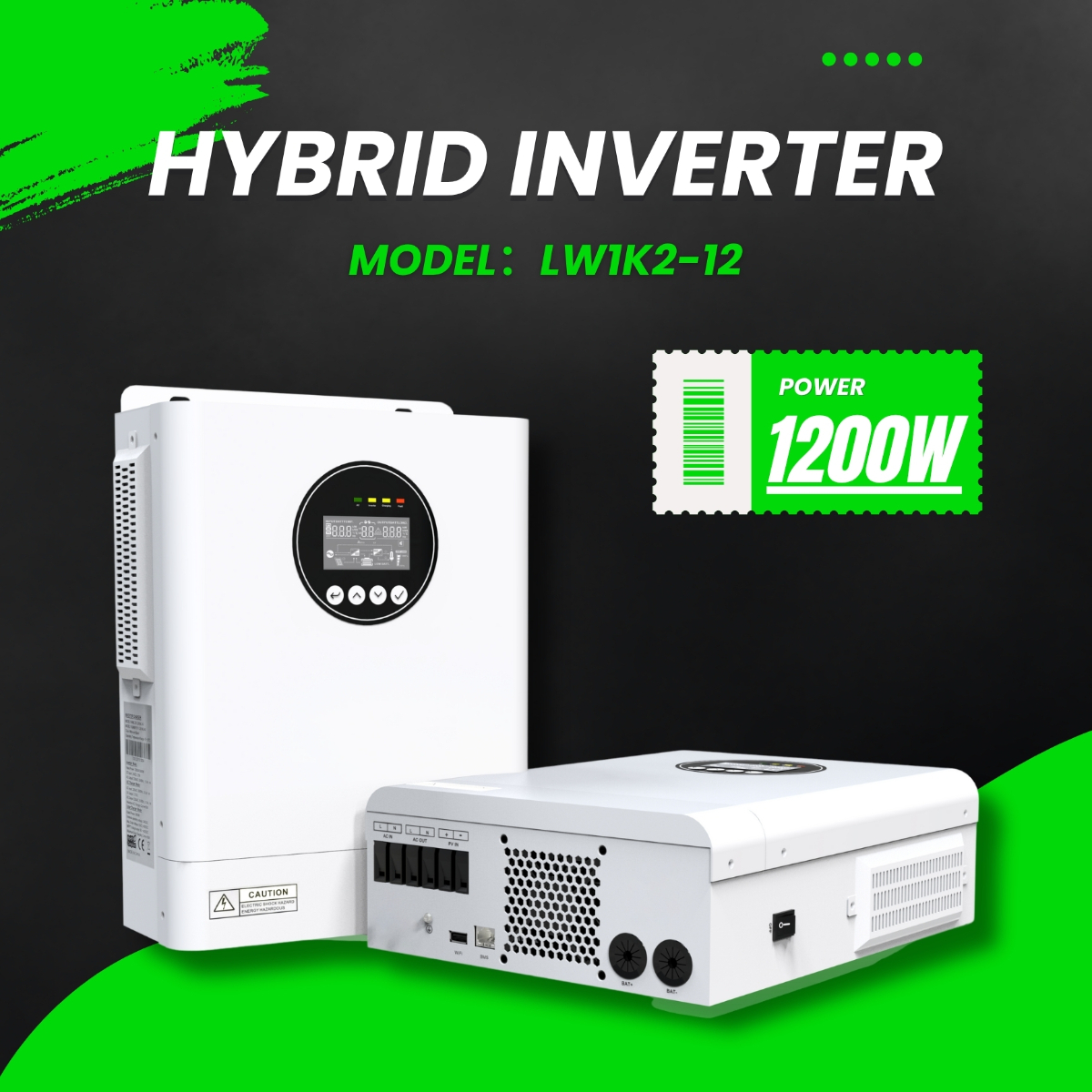

1200w Hybrid Inverter

AC Input

Rated Input Voltage (VAC)

208 / 220 / 230 / 240; L+N+PE

Voltage Range (VAC)

90~280±3 (normal mode); 170~280±3 (UPS mode)

Frequency (Hz)

50 / 60 (Auto Adaptive)

AC Output

Rated Capacity (kW)

1.2

Surge Power (kVA)

2.4

Voltage (VAC)

208 / 220 / 230 / 240

Power Factor (PF)

1

Frequency

50/60Hz±0.1%

Switch Time (ms)

10 (APP/UPS/GEN mode)

Wave Form

Pure Sine Wave

Overload Capacity (Battery Mode)

60s@102%-120% load; 10s@120%-200% load;

Max. Efficiency (Battery Mode)

90%@12VDC

Parallel Quantity

NA

Solar Charger Type

MPPT

Max PV input current / power

18A / 800W

MPPT Range@Operating Voltage (VDC)

17~115

Max PV Open Circuit Voltage (VDC)

115

Max PV Charge Current (A)

50

Max AC Charge Current (A)

50

Max. Charge Current (PV + AC) (A)

100

Battery

Normal Voltage (VDC）

12

Floating Charge Voltage (VDC)

13.8

Overcharge Protection (VDC)

15

Battery Type

Lead-acid / Lithium

Interface

HMI

LCD

Interface

RS232 / RS485 (optional) / CAN (optional)

Monitoring

Wifi(optional)

General Data

Ingress Protection

IP21

Operating Temperature

-10°C ~ 60°C

Relative Humidity

5% - 95% (Non-condensing)

Storage Temperature

-15°C ~ 60°C

Net Weight (kg)

3.5

Dimensions (H*W*D)

319*229*98mm

Max. Operating Altitude

4000m (Derating above 1000m)

Activation

AC Activation

YES

PV Activation

YES
