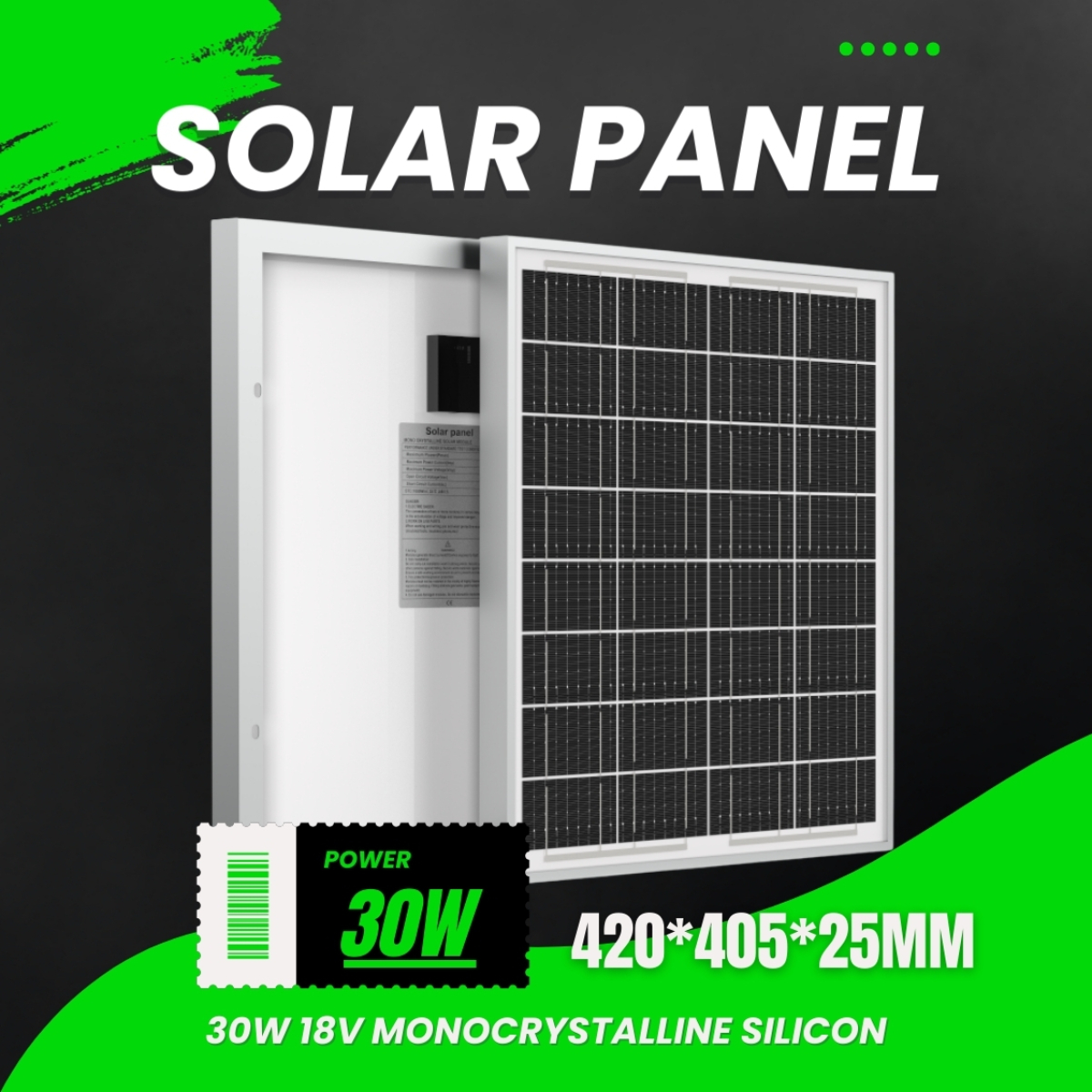

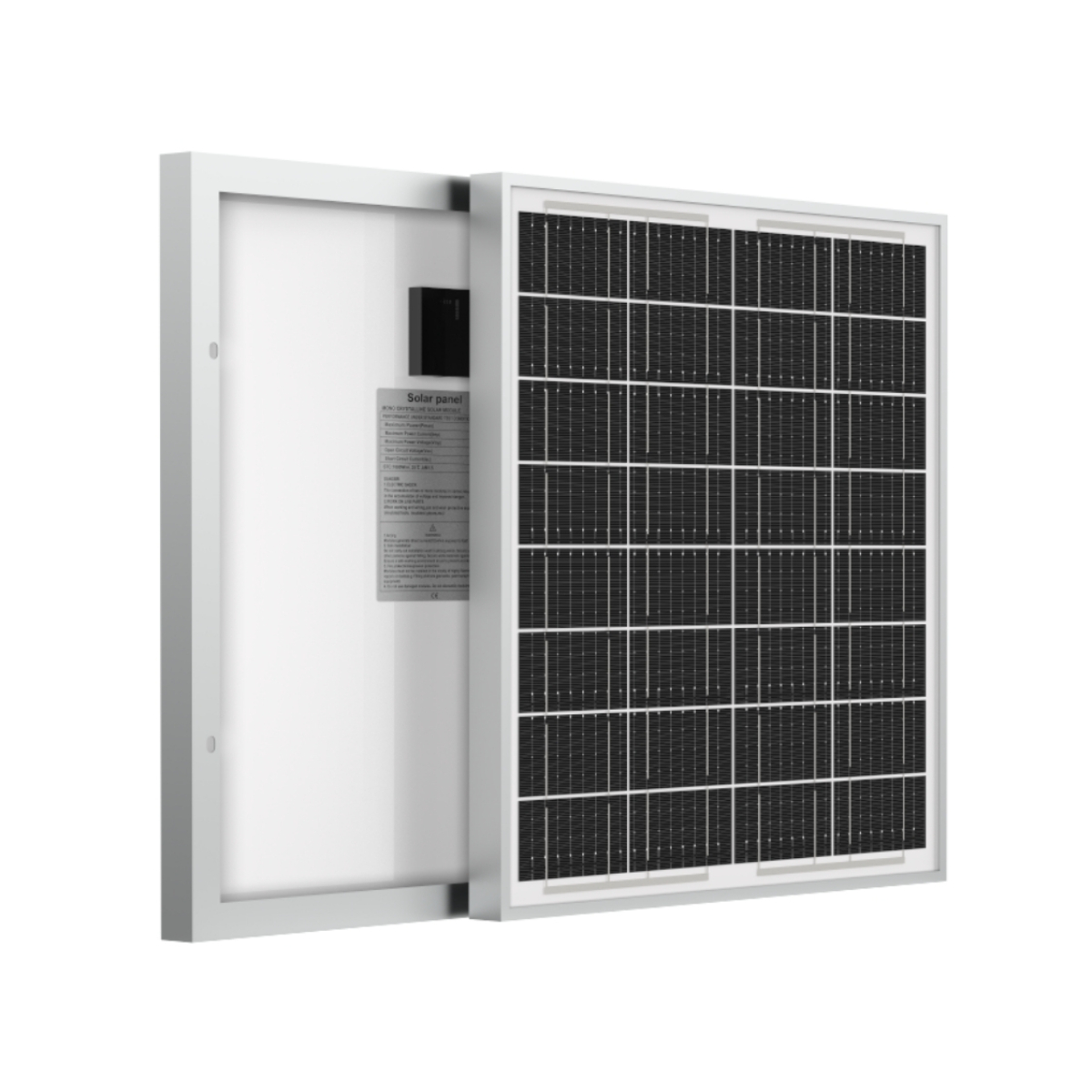

30w 420x405x25mm
Solar Panels
Contact Us
|
Electrical Characteristics (STC) |
|
|
Maximum Power- Pmax |
30W |
|
Open Circuit Voltage - Voc |
21.84V |
|
Short- Circuit Current - Isc |
1.75A |
|
Voltage at Pmax -Vmp |
18.2V |
|
Current at Pmax - Imp |
1.65A |
|
Module Efficiency -ηm |
17.64% |
|
Power Tolerance |
0, +4.99W |
|
Maximum System Voltage |
700Vdc (IEC / UL) |
|
Maximum Series Fuse Rating |
10A |
|
Mechanical Specifications |
|
|
External Dimensions |
420*405*25mm |
|
Weight |
1.6KG |
|

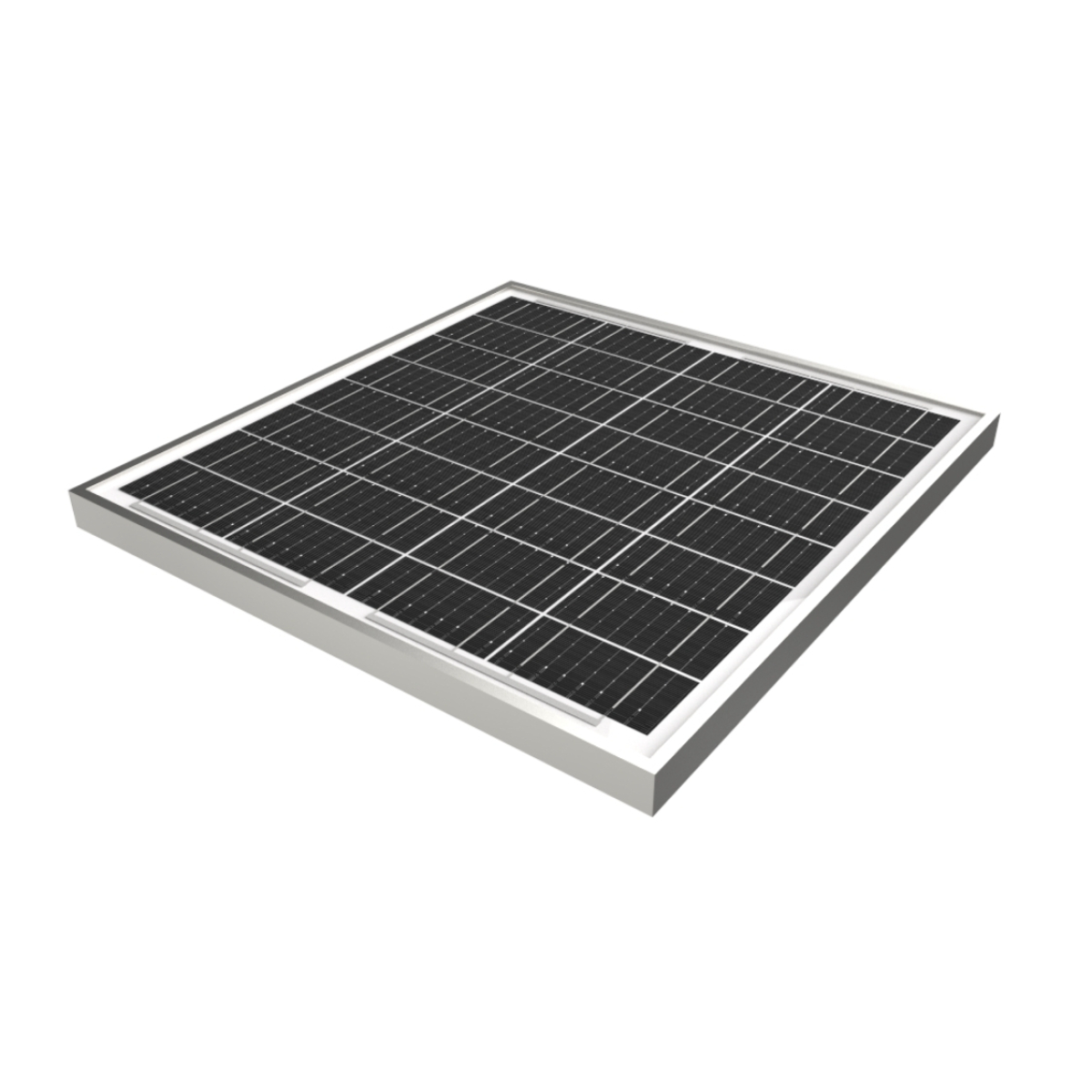

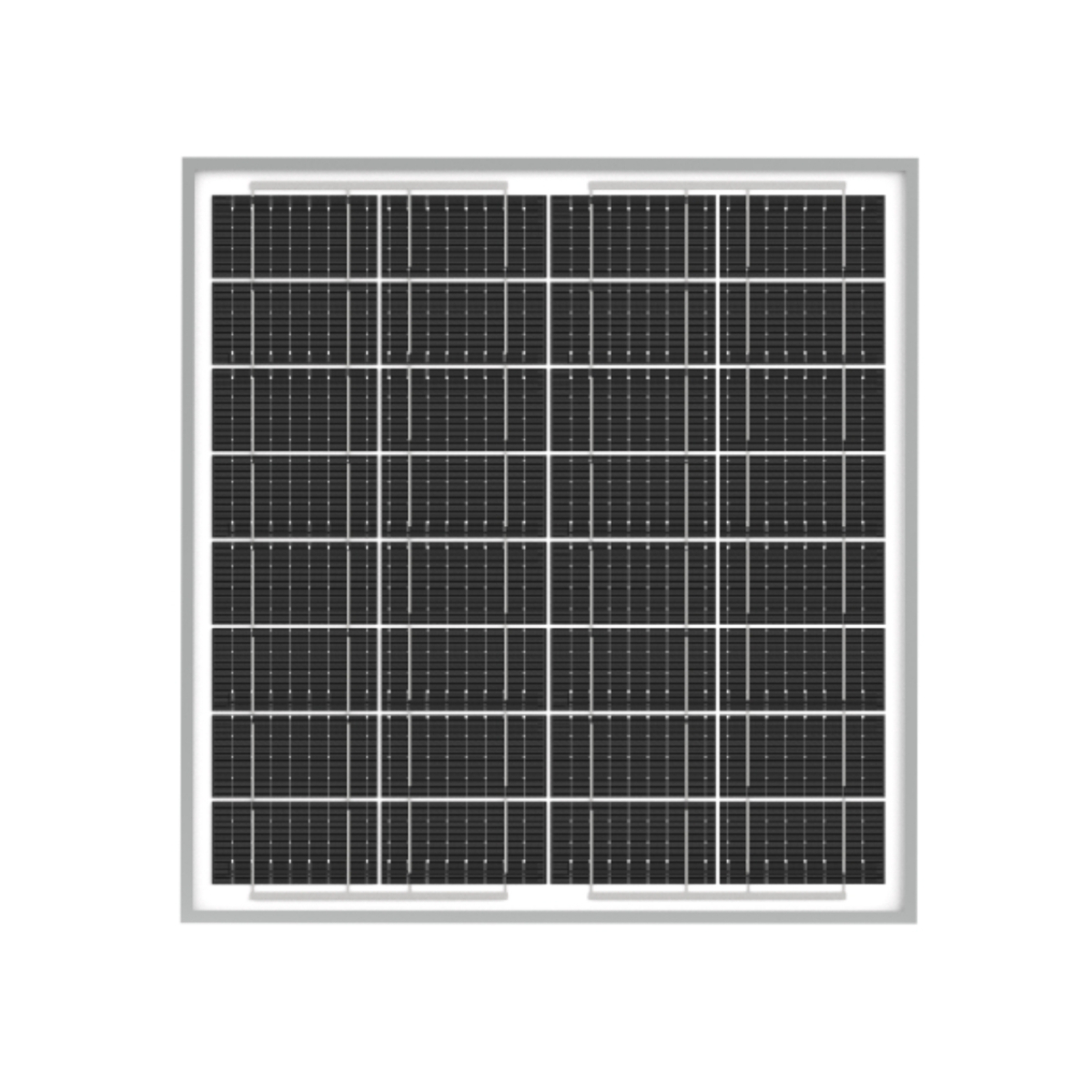

Solar Cells |
Mono crystalline 91*45.5mm (4*8Pcs) |
|
Front Glass |
3.2 mm tempered glass |
|

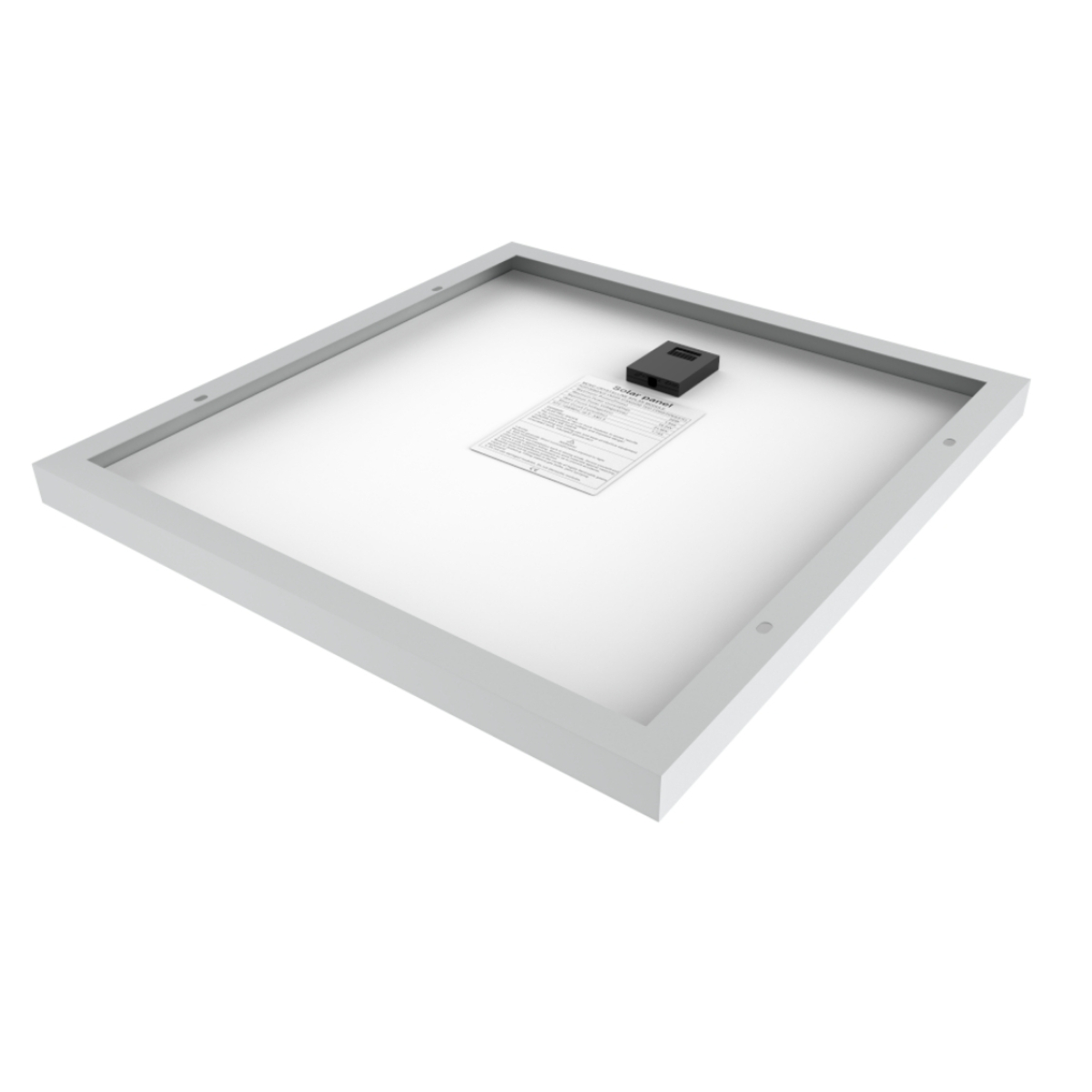

Frame |
Aluminum |
|

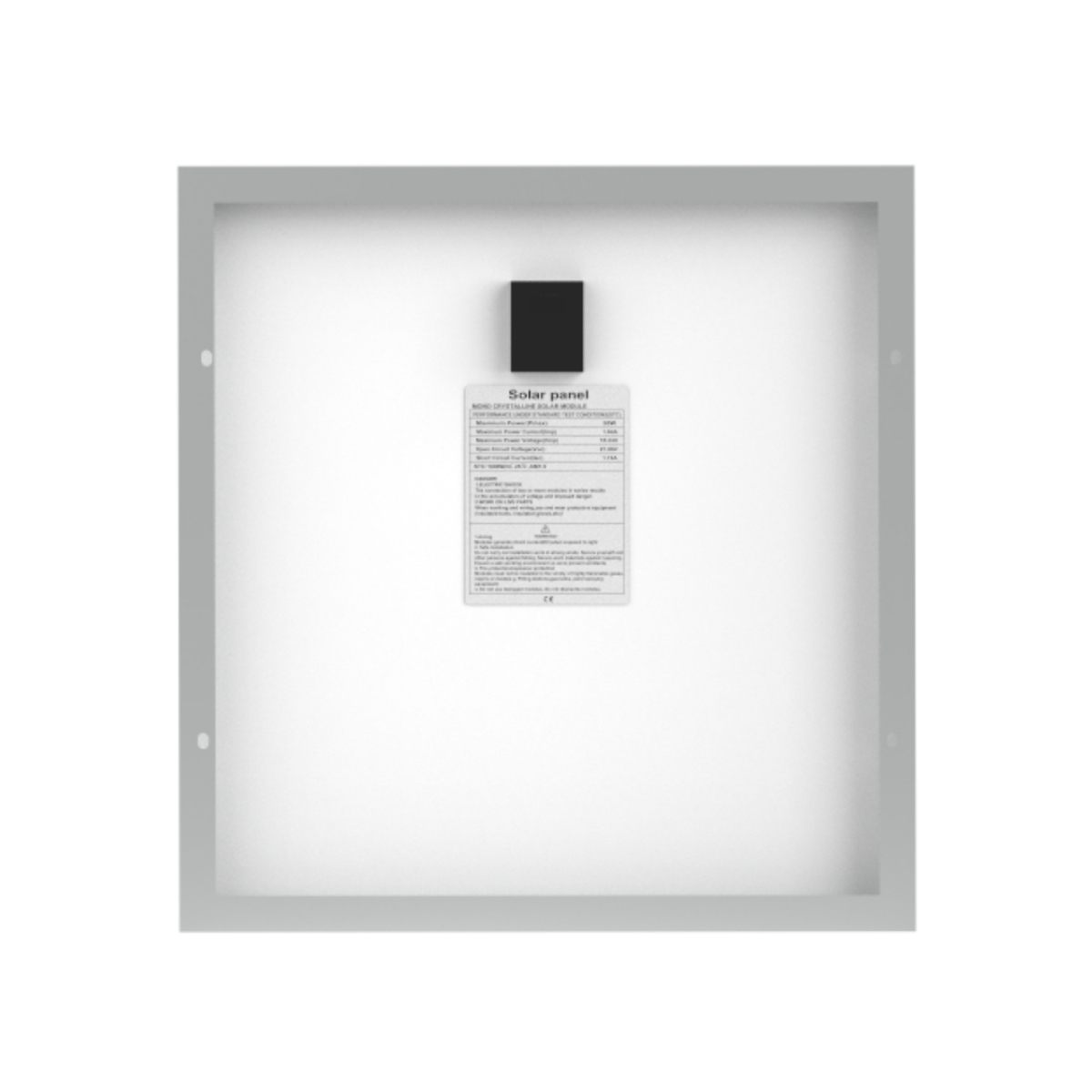

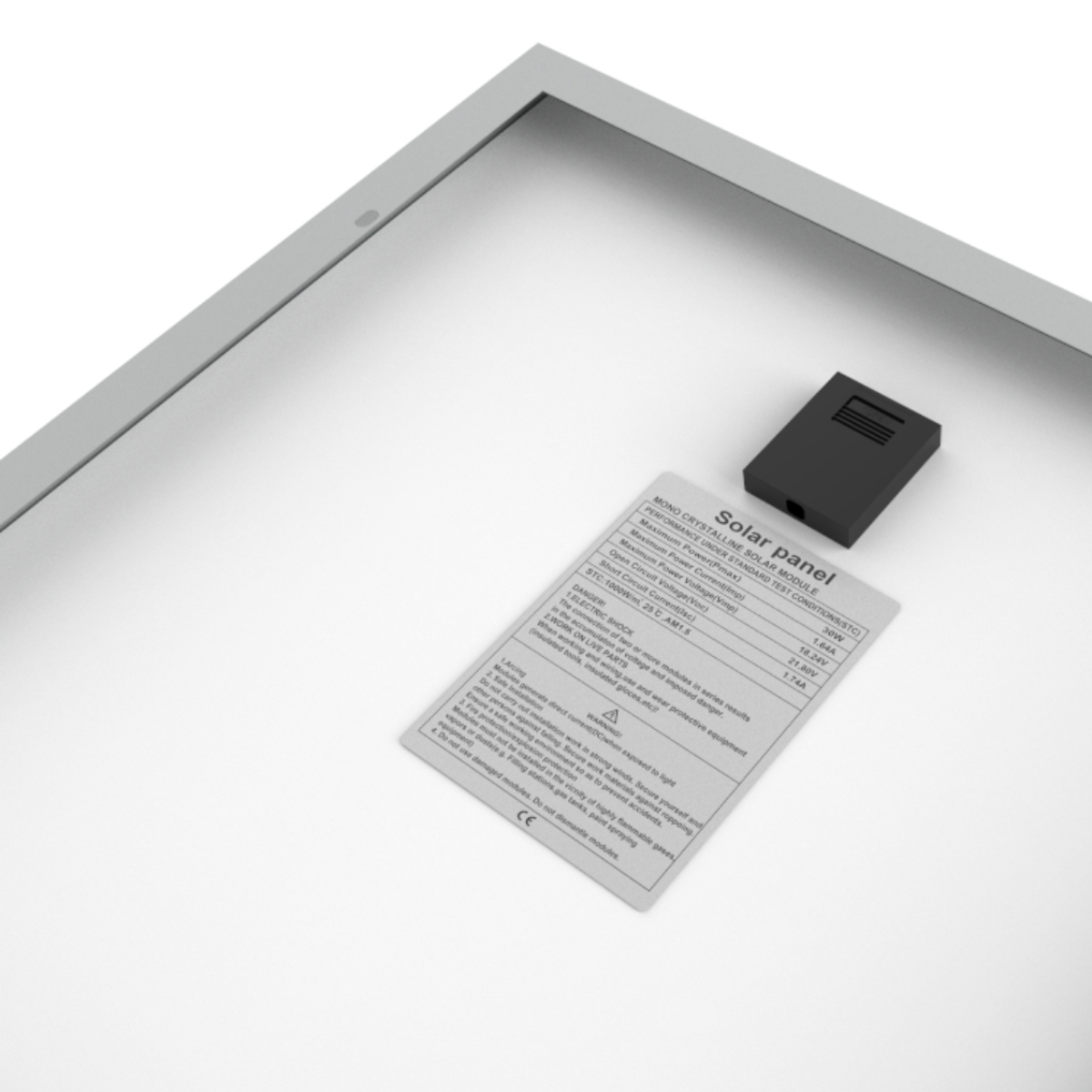

Junction Box |
IP67 |
|
Output Cables |
Without cable |
|
Connector |
Without Compatible |
|
Mechanical Load |
Front Side Max. 5400Pa, Rear Side Max. 2400Pa |
|
Packing Configuration |
|
|
Module Type |
182M03018 |
|
Module Dimensions |
420*405*25mm |
|
Package Dimensions |
435*140*420mm |
|
Package Weight |
17KG |
|
Pieces/Package |
10Pcs |
|
Temperature Characteristics |
|
|
Pmax Temperature Coe cient |
-0.350%/°C |
|
Voc Temperature Coe cient |
-0.270%/°C |
|
Isc Temperature Coe cient |
+0.048%/°C |
|
Operating Temperature |
-40~+85°C |
|
Nominal Operating Cell Temperature(NOCT) |
45±2°C |
