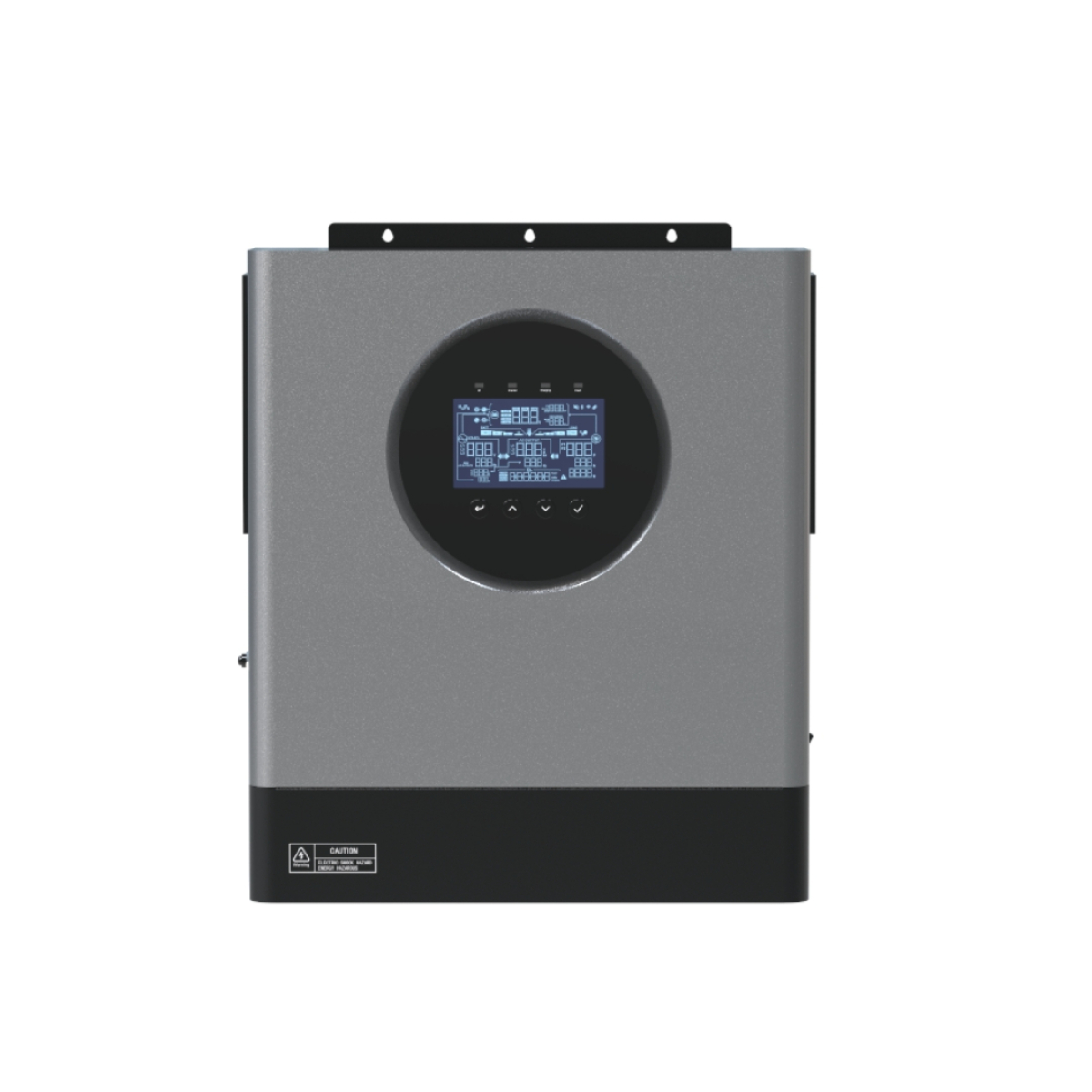

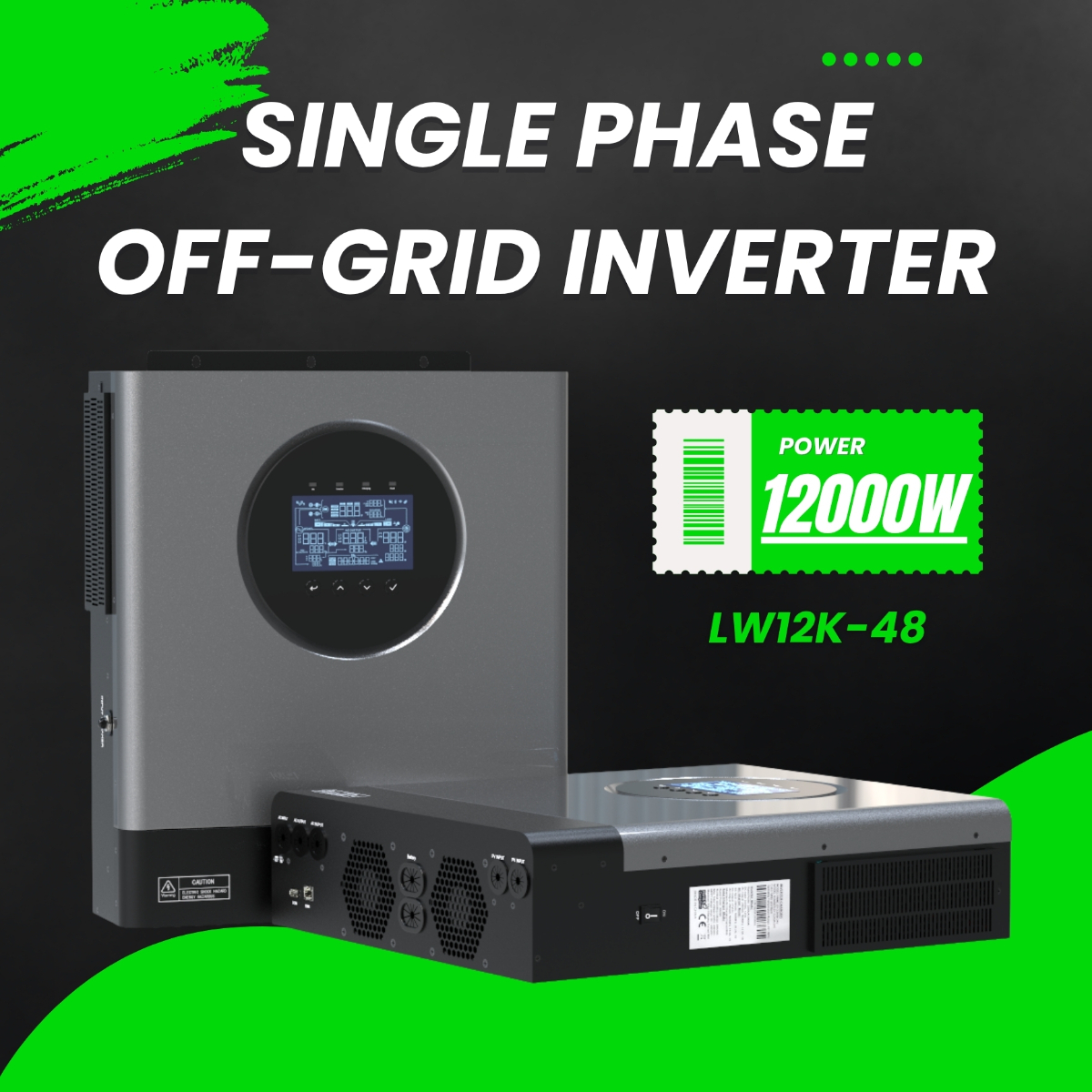

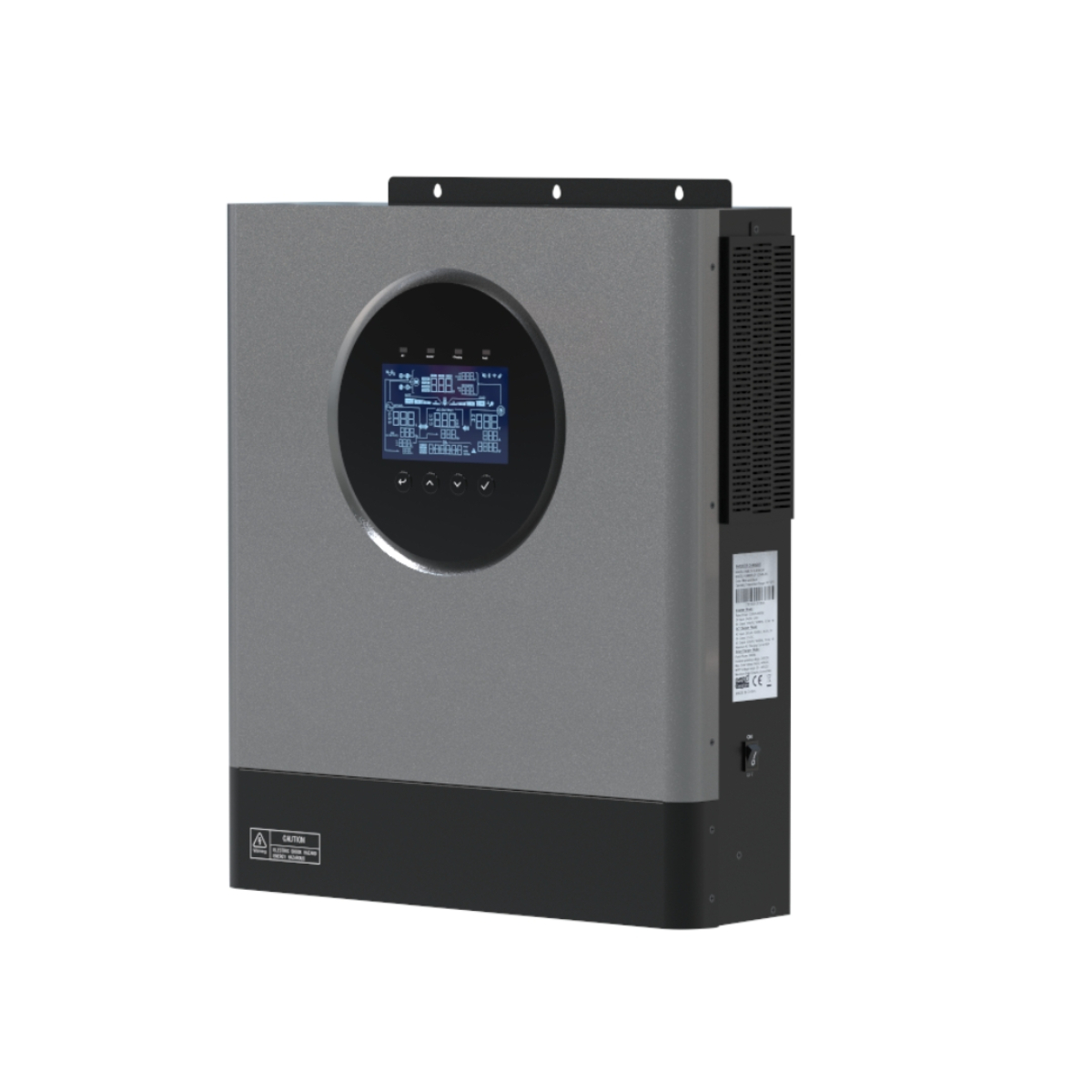

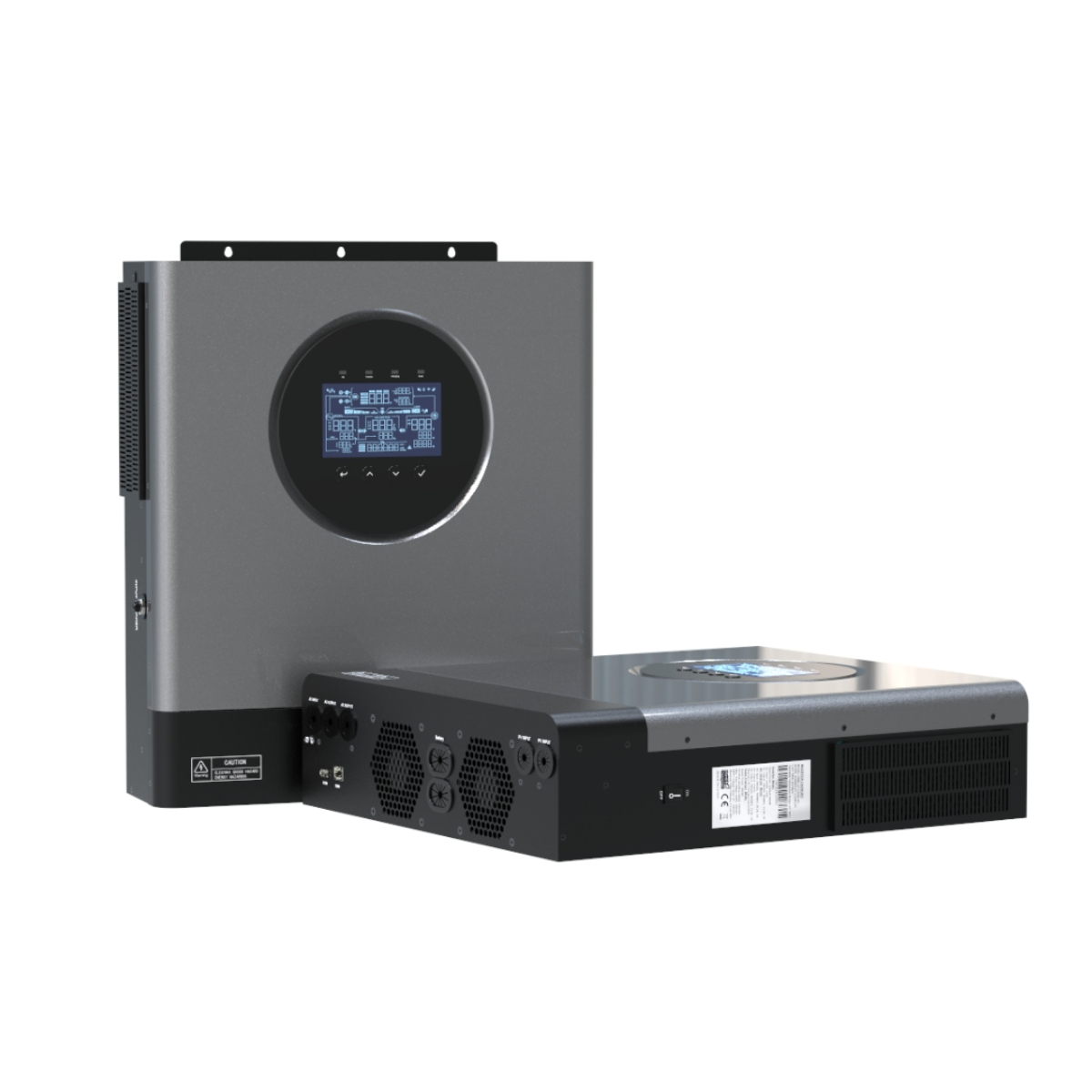

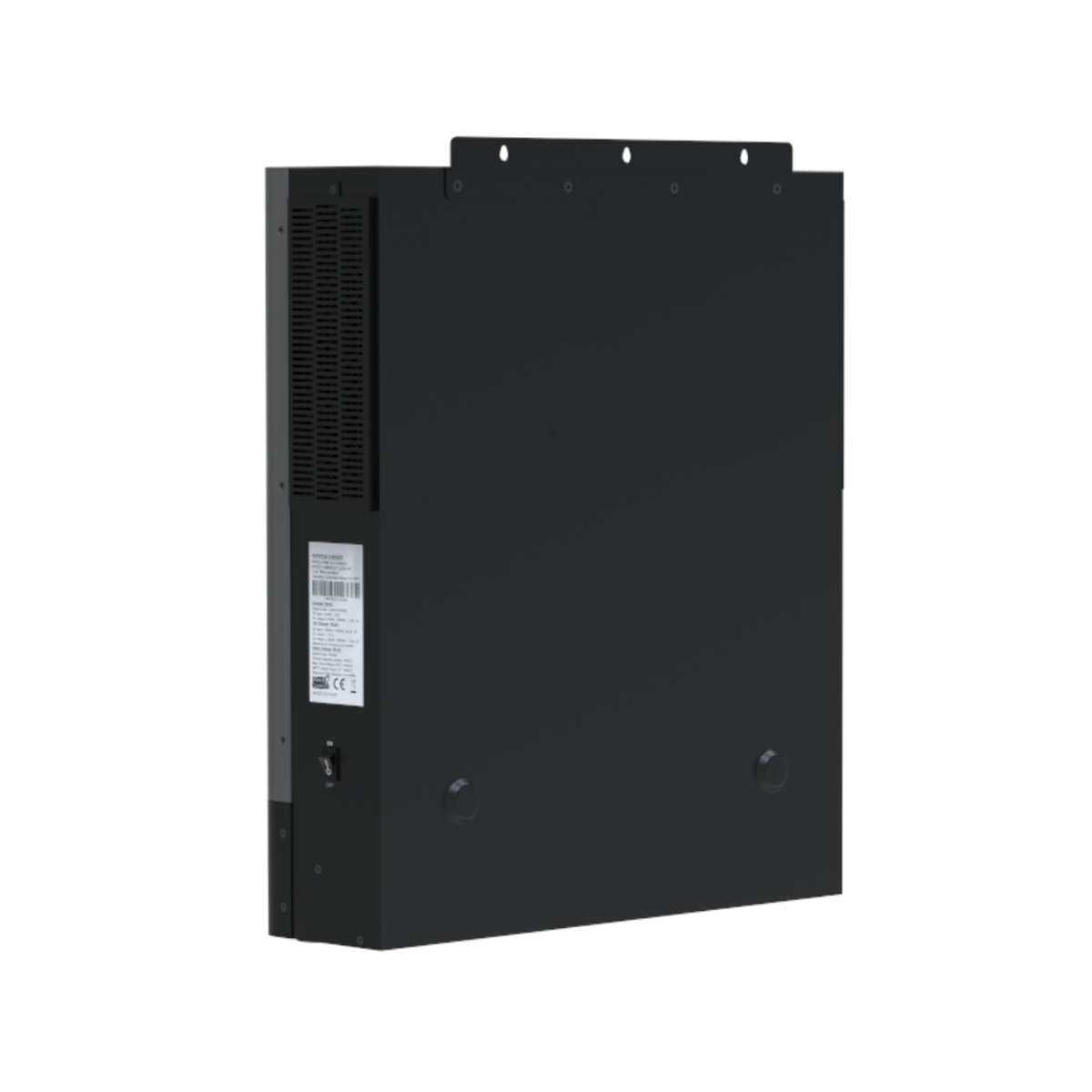

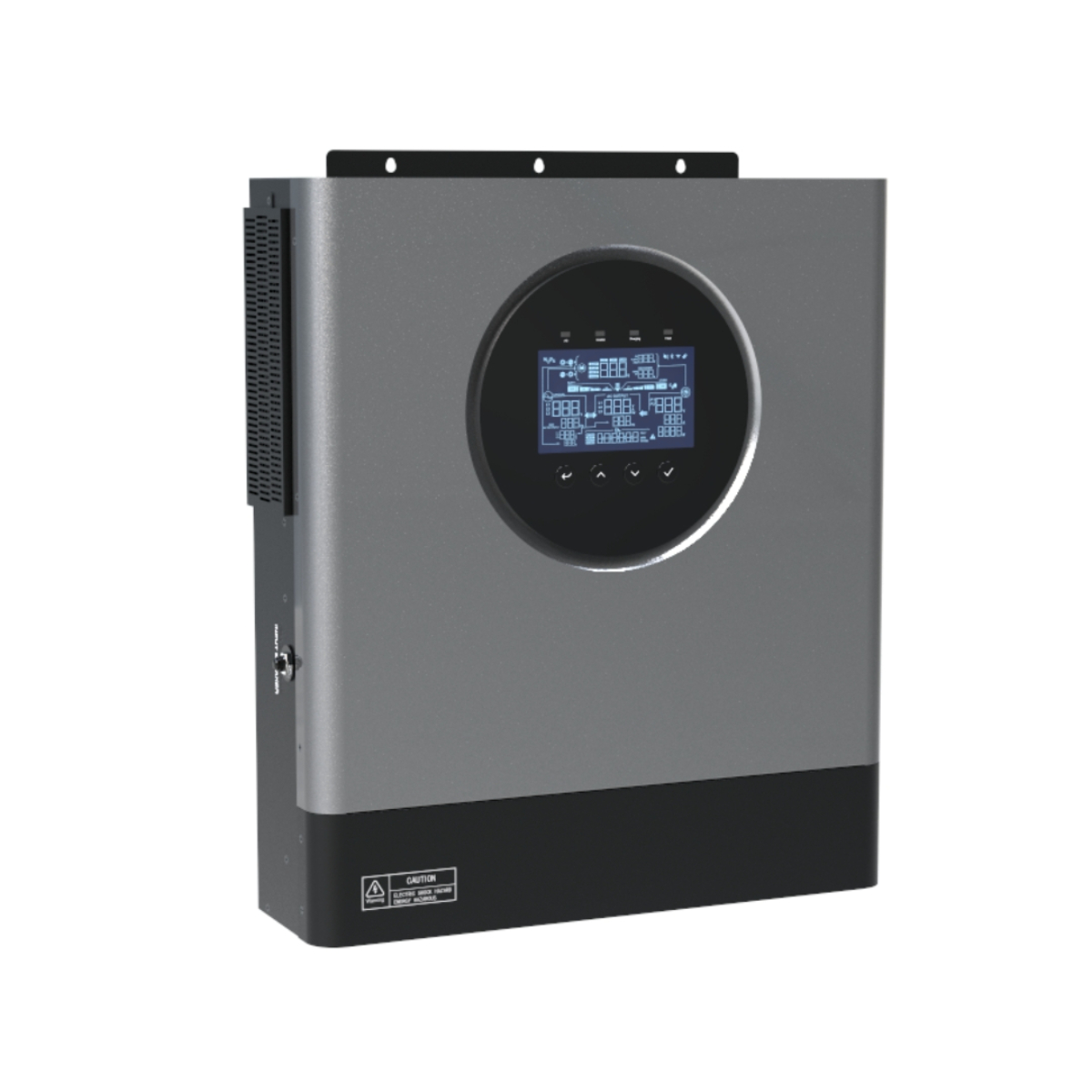

12000w Hybrid Inverter

AC Input

Rated Input Voltage (VAC)

208 / 220 / 230 / 240; L+N+PE

Voltage Range (VAC)

90~280±3 (normal mode); 170~280±3 (UPS mode)

Frequency (Hz)

50 / 60 (Auto Adaptive)

AC Output

Rated Capacity (kW)

12

Surge Power (kVA)

24

Voltage (VAC)

208 / 220 / 230 / 240

Power Factor (PF)

1

Frequency

50/60Hz±0.1%

Switch Time (ms)

10 (normal mode) / 10 (UPS mode)

Wave Form

Pure Sine Wave

Overload Capacity (Battery Mode)

1min@102%-125%load, 10s@>125% load

Max. Efficiency (Battery Mode)

94%@48VDC

Parallel Quantity

NA

Charger

(PV / AC)

Solar Charger Type

Dual MPPTs

Max. PV input Current / Input Power

Using One MPPT: 27A/9KW

Using Two MPPTs: 22.5A/Per MPPT, 15kW/Total

MPPT Range@Operating Voltage (VDC)

60~450

Max PV Open Circuit Voltage (VDC)

500

Max PV Charge Current (A)

160

Max AC Charge Current (A)

160

Max. Charge Current (PV + AC) (A)

160

Battery

Normal Voltage (VDC）

48

Floating Charge Voltage (VDC)

54

Overcharge Protection (VDC)

61

Battery Type

Lead-acid / Lithium

Interface

HMI

LCD

Interface

RS232 / RS485 / CAN (optional)

Monitoring

Wifi(optional)

General Data

Ingress Protection

IP21

Operating Temperature

-10°C ~ 60°C

Relative Humidity

5% - 95% (Non-condensing)

Storage Temperature

-15°C ~ 60°C

Net Weight (kg)

15

Dimensions (H*W*D)

514*442*121mm

Max. Operating Altitude

4000m (Derating above 1000m)
