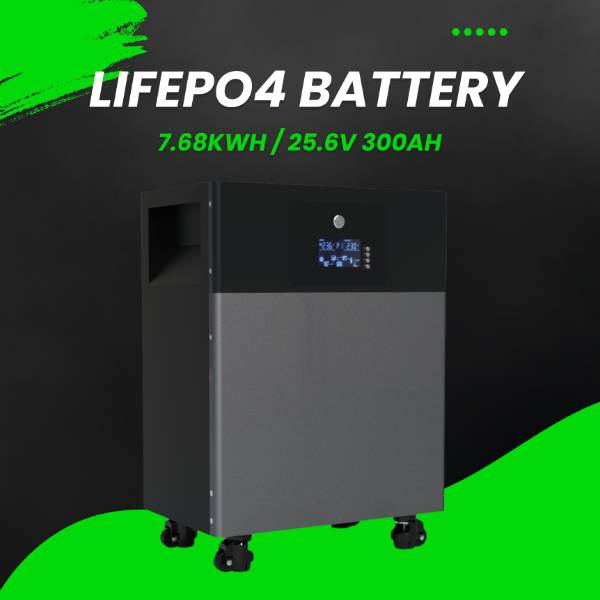

7.68KWh LiFePO4 Battery
25.6v / 300Ah
Contact Us
|
Rated battery voltage
|
25.6V
|
|
Energy
|
7680wh
|
|
Nominal capacity
|
300Ah
|
|
Combination mode
|
8S1P
|
|
Cycle life
|
>6000cyc@80%DOD@35℃
|
|
Monthly self-discharge
|
3%/month
|
|
Charging efficiency
|
>97%
|
|
Discharge efficiency
|
>98%
|
|
Recommended charging voltage
|
28.8V
|
|
Recommended charging current
|
150A
|
|
Maximum charging voltage
|
29.2V
|
|
Maximum charging current
|
200A
|
|
Recommended discharge current
|
150A
|
|
Maximum discharge current
|
200A
|
|
Discharge termination voltage
|
21.6V
|
|
Battery Size (W*D*H)
|
395*262*570MM
|
|
Package Size (W*D*H)
|
653*476*427MM
|
|
Net weight
|
64KG
|
|
Gross weight
|
70KG
|
|
Class of protection
|
IP30
|
|
Shell material
|
Case of metal
|
|
Charging temperature range
|
0℃~45℃
|
|
Discharge temperature range
|
-20℃~60℃
|
|
Storage temperature
|
0℃~40℃
|
|
Humidness
|
10%-85% relative humidity(no condensation)
|
|
communication
|
CAN/RS485/RS232
|
