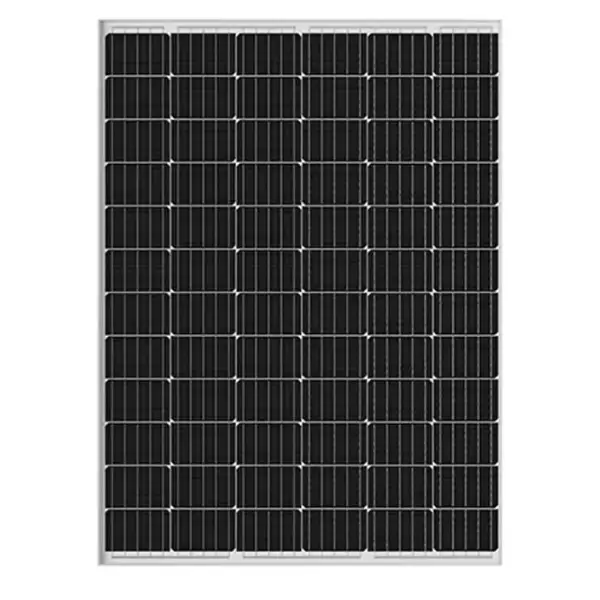

200w Imitation single crystal


Solar Cell 157 Imitation single crystal
Power 200W
Module Efficiency 15.04%
Voltage at Pmax(Vmp) 35V
Current at Pmax(Imp) 5.71A
Open Circuit Voltage(Voc) 43V
Short Circuit Current(Isc) 6.2A
Dimension 1340*992*35mm



Inquiry Now

Imitation monocrystalline off-grid solar panels have a wide range of specific uses, covering independent power supply systems, agricultural and irrigation systems, ship and RV power systems, communication and monitoring equipment, water pump systems, and power supply in rural and remote areas. Scenarios provide reliable and sustainable power solutions.


Mechanical Diagrams













Certification authority



Brand customization;


Batch No. Logo Parameter label Package


Product Features;

High efficiency:

Imitation monocrystalline off-grid solar panels utilize advanced polycrystalline silicon materials and manufacturing processes, resulting in high photovoltaic conversion efficiency, effectively converting sunlight into electricity.


These panels undergo rigorous quality control and testing, ensuring excellent weather resistance and corrosion resistance, allowing them to operate reliably in various harsh environmental conditions.

Sustainable energy:

By harnessing solar energy as a clean and renewable energy source, imitation monocrystalline off-grid solar panels reduce reliance on traditional fossil fuels, making them environmentally friendly. They contribute to carbon emission reduction and help protect the ecosystem.

Independent power supply capability:

Imitation monocrystalline off-grid solar panels provide independent power supply for off-grid systems, eliminating the need for traditional power grids. They are suitable for remote areas or locations without grid access.


Compared to monocrystalline silicon solar panels, imitation monocrystalline off-grid solar panels offer a more cost-effective solar energy solution due to their lower manufacturing costs.


Liectrical Parameters at (STC)   Mechanical Parameters
Power(W) 200W Solar Cell(Type/Size) Mono(157mm)
 Module Efficiency 15.04% Dimensions 1340*992*35mm
Voltage at Pmax(Vmp) 35.00V Weight KG
Current at Pmax(Imp) 5.71A Mechanical Load Front 5400Pa/Back 2400Pa
Open Circuit Voltage(Voc)
43.00V Cable Cross Section Size
70CM 2.5mm² solar cabel
Short Circuit Current(Isc) 6.20A Waterproof junction box IP67/QX-SY005 2*15A diode






Product Usage;

Remote areas:

These solar panels are ideal for use in remote areas, especially where access to the traditional power grid is unavailable. They provide reliable power supply to remote cabins, vacation villas, or off-grid homes.

Marine vessels and RVs:

Imitation monocrystalline off-grid solar panels can be installed on boats and RVs, offering independent power supply. They can power electronic devices, lighting systems on boats, and provide energy for appliances and lighting inside RVs.

Rural areas:

In rural areas, imitation monocrystalline off-grid solar panels can be used for irrigation systems, agricultural equipment, lighting, and electricity needs of rural households. They help address energy supply challenges in rural regions.

Emergency and disaster response:

Imitation monocrystalline off-grid solar panels are valuable in emergency and disaster situations. They provide the necessary power for temporary shelters, medical equipment, surveillance, communication equipment and more. They are a key source of energy in times of crisis.


Installation case;


Power Station Outdoor RV Power Supply
