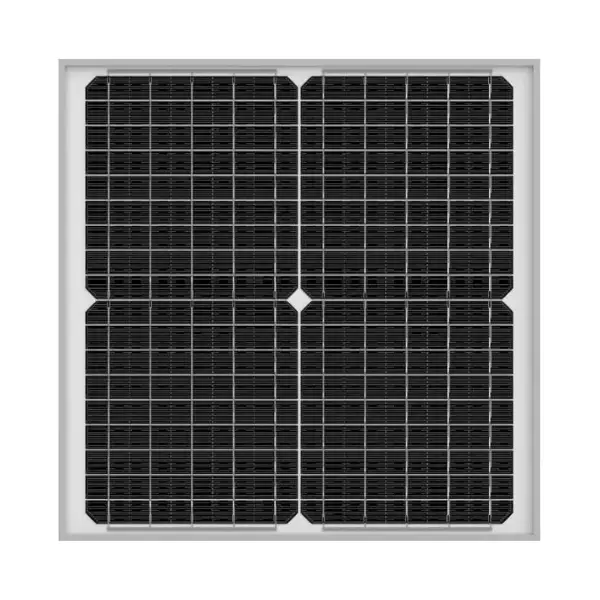

QN-158M02018
20w - 158 MBB Mono Series
| Solar Cell | 158 Mono |
| Power | 20W |
| Module Efficiency | 15.43% |
| Voltage at Pmax（Vmp） | 17.5V |
| Current at Pmax（Imp） | 1.14A |
| Open Circuit Voltage（Voc） | 21.5V |
| Short Circuit Current（Isc） | 1.24A |
| Dimension | 360*360*17mm |
Inquiry Now
Products Description
 |
 |
| Liectrical Parameters at （STC） | Mechanical Parameters | ||
| Power（W） | 10W | Solar Cell（Type/Size） | Mono(158mm) |
| Module Efficiency（%） | 11.31% | Solar Cells Number | 36Pcs(2*18) |
| Voltage at Pmax（Vmp） | 17.5V | Dimension | 340*260*17mm |
| Current at Pmax（Imp） | 0.57A | Weight | KG/Pcs |
| Open Circuit Voltage（Voc） | 21.5V | Junction Box | IP67/0*bypass diode |
| Open Circuit Voltage（Voc） | 0.62A | Cable | // |
| Power Tolerance（W） | ±3% | Connector | // |
| PS; If you have special requirements, you can contact customer service for customization. | |||
 |
 |
 |
Product Packaging
 |
 |
|
Product Barcode |
Brand Logo |
 |
 |
|
Parameter Label |
Package |
|
Packing |
|||
| Carton Size | 355*275*185mm | Number | 10Pcs/Ctn |
| Weight | KG/Ctn | 20GP Container | 15500 Pcs |
| Volume | 0.018Cbm/Ctn | 40HQ Container | 38750 Pcs |
| Customizable: LOGO, parameter label, product batch number, packaging | |||
