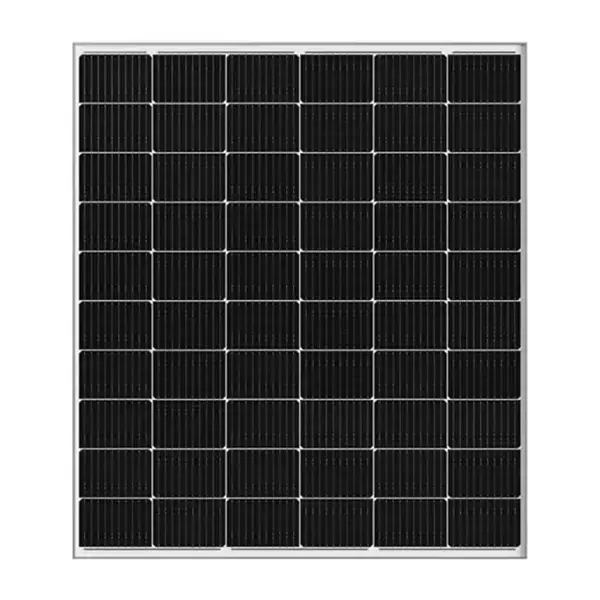

QN-182M030018

 Product Usage



◆Solar power plants:

They can be used for the construction of large-scale solar power plants, generating electricity for the grid or large industrial users.



◆Commercial and industrial buildings:

 They are suitable for rooftop installations on commercial and industrial buildings, providing renewable power supply and reducing energy costs.



◆Agriculture and rural areas:

They can be used in agricultural greenhouses, irrigation systems, and for lighting and power supply in rural areas, meeting the energy needs of agriculture and rural communities.



◆Remote areas and islands:

Due to their high power output and adaptability to complex environments, they are suitable for providing power supply in remote areas and on islands, reducing reliance on traditional energy sources.



◆Mountainous regions and outdoor activities:

They are suitable for outdoor activities in mountainous regions, such as camping, hiking, and outdoor music festivals, providing portable renewable energy solutions.







 Product Features;



◆High efficiency:

MBB technology is adopted to improve the photoelectric conversion efficiency and achieve higher power generation capacity.



◆Low resistance loss:

The design of multiple current collection lines reduces the flow distance of the current inside the cell and reduces resistance loss.



◆High Reliability:

By reducing the stress and thermal stress between cells, the reliability and long-term performance stability of the module are improved.



◆Beautiful appearance:

Modules using MBB technology have a more detailed cell layout and less wire shielding, presenting a more beautiful appearance.



◆Adapt to complex environments:

With good anti-PID performance and durable anti-reflection coating, it can work in different climates and environmental conditions, and has certain pressure and wind resistance.







  Products Description







Liectrical Parameters at （STC）		Mechanical Parameters
Power（W）	300W	Solar Cell（Type/Size）	Mono(182mm)
Module Efficiency（%）	20.50%	Solar Cells Number	60Pcs(6*10)
Voltage at Pmax（Vmp）	34.20V	Dimension	1290*1134*35mm
Current at Pmax（Imp）	8.77A	Weight	14.3KG/Pcs
Open Circuit Voltage（Voc）	41.04V	Junction Box	IP67/3*bypass diode
Open Circuit Voltage（Voc）	9.30A	Cable	4mm²/900mm
Power Tolerance（W）	±3%	Connector	Original MC4/Compatible MC4
PS; If you have special requirements, you can contact customer service for customization.









  Product Packaging

Product Barcode	Brand Logo
Parameter Label	Package





Packing
Carton Size	1305*1149*83mm	Number	2Pcs/Ctn
Weight	46KG/Ctn	20GP Container	296 Pcs
Volume	0.124Cbm/Ctn	40HQ Container	976 Pcs
Customizable: LOGO, parameter label, product batch number, packaging
