QN-182M03018

 Product Usage



◆Solar power plants:

They can be used for the construction of large-scale solar power plants, generating electricity for the grid or large industrial users.



◆Commercial and industrial buildings:

 They are suitable for rooftop installations on commercial and industrial buildings, providing renewable power supply and reducing energy costs.



◆Agriculture and rural areas:

They can be used in agricultural greenhouses, irrigation systems, and for lighting and power supply in rural areas, meeting the energy needs of agriculture and rural communities.



◆Remote areas and islands:

Due to their high power output and adaptability to complex environments, they are suitable for providing power supply in remote areas and on islands, reducing reliance on traditional energy sources.



◆Mountainous regions and outdoor activities:

They are suitable for outdoor activities in mountainous regions, such as camping, hiking, and outdoor music festivals, providing portable renewable energy solutions.







 Product Features;



◆High efficiency:

MBB technology is adopted to improve the photoelectric conversion efficiency and achieve higher power generation capacity.



◆Low resistance loss:

The design of multiple current collection lines reduces the flow distance of the current inside the cell and reduces resistance loss.



◆High Reliability:

By reducing the stress and thermal stress between cells, the reliability and long-term performance stability of the module are improved.



◆Beautiful appearance:

Modules using MBB technology have a more detailed cell layout and less wire shielding, presenting a more beautiful appearance.



◆Adapt to complex environments:

With good anti-PID performance and durable anti-reflection coating, it can work in different climates and environmental conditions, and has certain pressure and wind resistance.







  Products Description







Liectrical Parameters at （STC）		Mechanical Parameters
Power（W）	30W	Solar Cell（Type/Size）	Mono(182mm)
Module Efficiency（%）	17.64%	Solar Cells Number	32Pcs(4*8)
Voltage at Pmax（Vmp）	18.24V	Dimension	420*405*30mm
Current at Pmax（Imp）	1.16A	Weight	1.75KG/Pcs
Open Circuit Voltage（Voc）	21.80V	Junction Box	IP67/0*bypass diode
Open Circuit Voltage（Voc）	1.74A	Cable	//
Power Tolerance（W）	±3%	Connector	//
PS; If you have special requirements, you can contact customer service for customization.









  Product Packaging

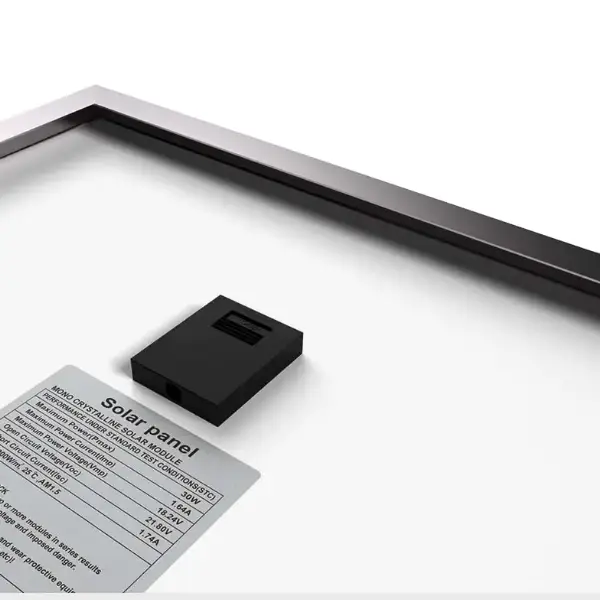

Product Barcode	Brand Logo
Parameter Label	Package





Packing
Carton Size	1050*770*70mm	Number	2Pcs/Ctn
Weight	17KG/Ctn	20GP Container	900 Pcs
Volume	0.057Cbm/Ctn	40HQ Container	2312 Pcs
Customizable: LOGO, parameter label, product batch number, packaging
