182MBB 410W Half Cut Cell Solar Module

QN-182M41031-HF

Solar Cell 182 Mono
Power 410W
Module Efficiency 21.00%
Voltage at Pmax(Vmp) 31V
Current at Pmax(Imp) 13.25A
Open Circuit Voltage(Voc) 37.23V
Short Circuit Current(Isc) 14.00A
Dimension 1722*1134*30mm



facebooktwitteryoutubelinkedin

Inquiry Now

The 410W solar module has the characteristics of high photoelectric conversion efficiency, low resistance loss, high reliability, beautiful appearance and adaptability to various complex environments, making it a popular choice for solar modules.

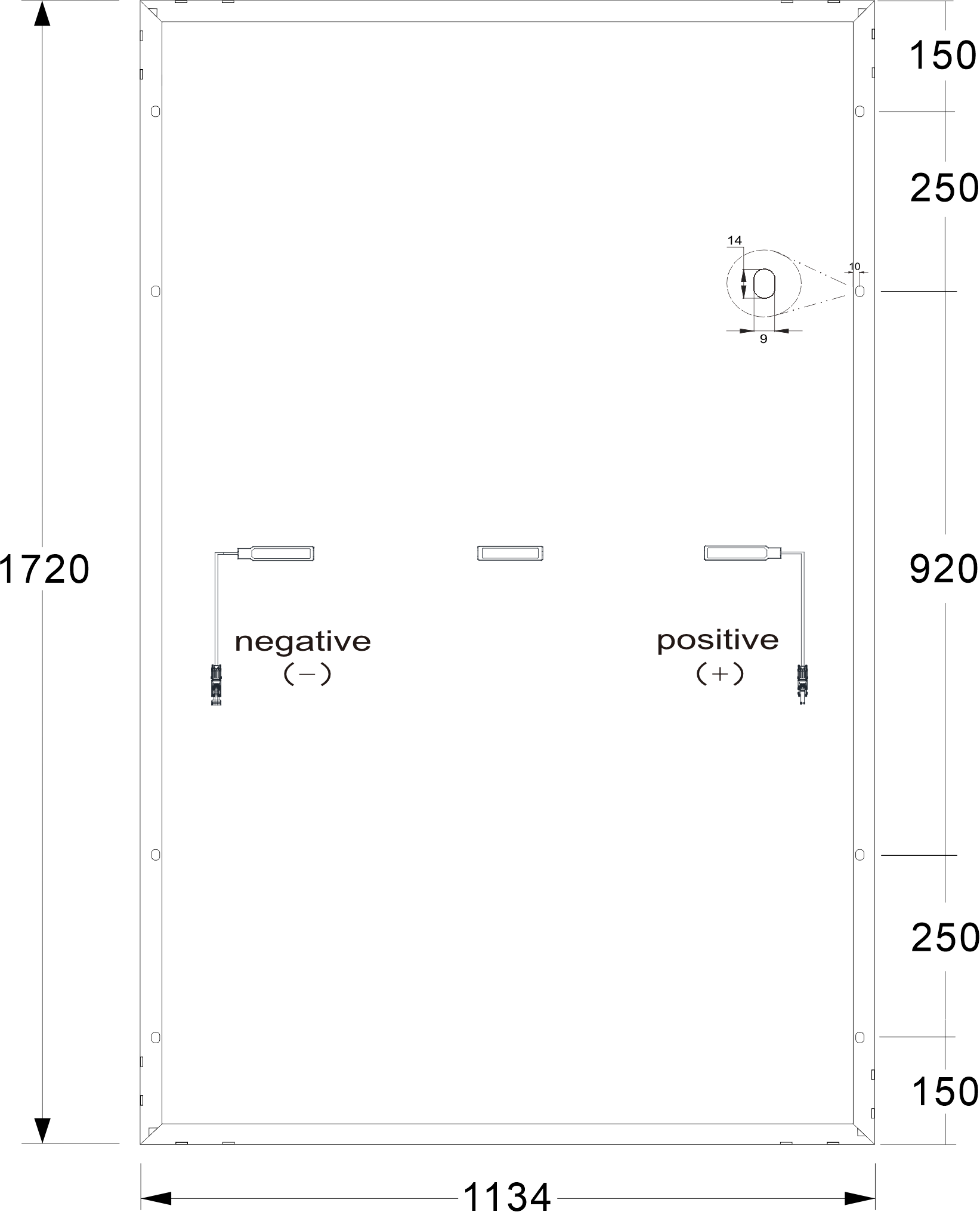

Mechanical Diagrams





















Units:mm/±2



Certification authority





Brand customization;



Batch No. Logo Parameter label Package



Product Features;

High efficiency:

MBB technology is adopted to improve the photoelectric conversion efficiency and achieve higher power generation capacity.

Low resistance loss:

The design of multiple current collection lines reduces the flow distance of the current inside the cell and reduces resistance loss.

High Reliability:

By reducing the stress and thermal stress between cells, the reliability and long-term performance stability of the module are improved.

Beautiful appearance:

Modules using MBB technology have a more detailed cell layout and less wire shielding, presenting a more beautiful appearance.

Adapt to complex environments:

With good anti-PID performance and durable anti-reflection coating, it can work in different climates and environmental conditions, and has certain pressure and wind resistance.



Liectrical Parameters at (STC)   Mechanical Parameters

Power(W) 410W Solar Cell(Type/Size) Mono(182mm)
 Module Efficiency 21.00% Dimensions 1720*1134*35mm
Voltage at Pmax(Vmp) 30.95V Weight 21.5KG
Current at Pmax(Imp) 13.25A Mechanical Load Front 5400Pa/Back 2400Pa
Open Circuit Voltage(Voc)
37.23V Cable Cross Section Size
4.0mm²/300mm
Short Circuit Current(Isc) 14.00A Waterproof junction box IP68/3*Bypass Diode





Characteristics;





Product Usage;

Solar power plants:

They can be used for the construction of large-scale solar power plants, generating electricity for the grid or large industrial users.



Commercial and industrial buildings:

 They are suitable for rooftop installations on commercial and industrial buildings, providing renewable power supply and reducing energy costs.



Agriculture and rural areas:

They can be used in agricultural greenhouses, irrigation systems, and for lighting and power supply in rural areas, meeting the energy needs of agriculture and rural communities.



Remote areas and islands:

Due to their high power output and adaptability to complex environments, they are suitable for providing power supply in remote areas and on islands, reducing reliance on traditional energy sources.



Mountainous regions and outdoor activities:

They are suitable for outdoor activities in mountainous regions, such as camping, hiking, and outdoor music festivals, providing portable renewable energy solutions.



Installation case;



Outdoor camping RV power supply
